Tylok® B-4-DFC-2

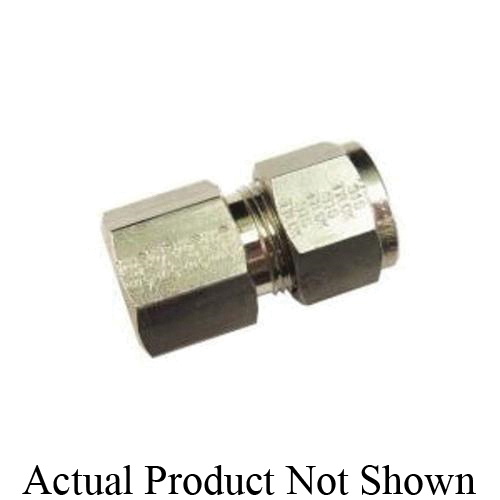

Tylok® CBC-Lok® B-4-DFC-2 DFC Double Ferrule Female Connector, 1/4 x 1/8 in, Tube x FNPT, Brass, Domestic

CBPN:188878

UPC:811731023646

MPN:B-4-DFC-2

Price:
$6.90 / EA

DESCRIPTION

Tylok® CBC-Lok® Female Connector, Double Ferrule, Series: DFC, Fitting/Connector Type: Connector, 1/4 x 1/8 in Nominal Size, Tube x FNPT, 9/16 in Hex, 1.228 in Length, Brass, Domestic

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

Tylok® CBC-Lok® B-4-DFC-2 DFC Double Ferrule Female Connector, 1/4 x 1/8 in, Tube x FNPT, Brass, Domestic

CBPN:188878

MPN:B-4-DFC-2

UPC:811731023646

Price:
$6.90 / EA

Tylok logo

DESCRIPTION

Tylok® CBC-Lok® Female Connector, Double Ferrule, Series: DFC, Fitting/Connector Type: Connector, 1/4 x 1/8 in Nominal Size, Tube x FNPT, 9/16 in Hex, 1.228 in Length, Brass, Domestic

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

Specifications

BrandTylok®
Weight0.06 lbs
Fitting/Connector TypeConnector
TypeDouble Ferrule
Nominal Size1/4 x 1/8 in
End StyleTube x FNPT
MaterialBrass
Hex Size9/16 in
Length1.228 in
Manufacturer NameTylok International
SeriesDFC
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B16 Alloy 360/ASTM B453 Alloy 345 Bar Stock | ASTM B124 Alloy 377 Forging | ASTM B75 Copper Temper (O) Tubing | ABS | ASTM F1387 | Canadian Registration | ISO 9001:2008

Item Features

  • Double ferrule swaging action
  • Total component interchangeability
  • Heat code traceable
  • ASTM material construction
  • 9/16 in nut
  • 1/8-27 NPT pipe thread
  • 60 max rockwell 15 T hardness
  • Interchanges with 203-1 and 2FF2
