Trerice AX9-1-403-04

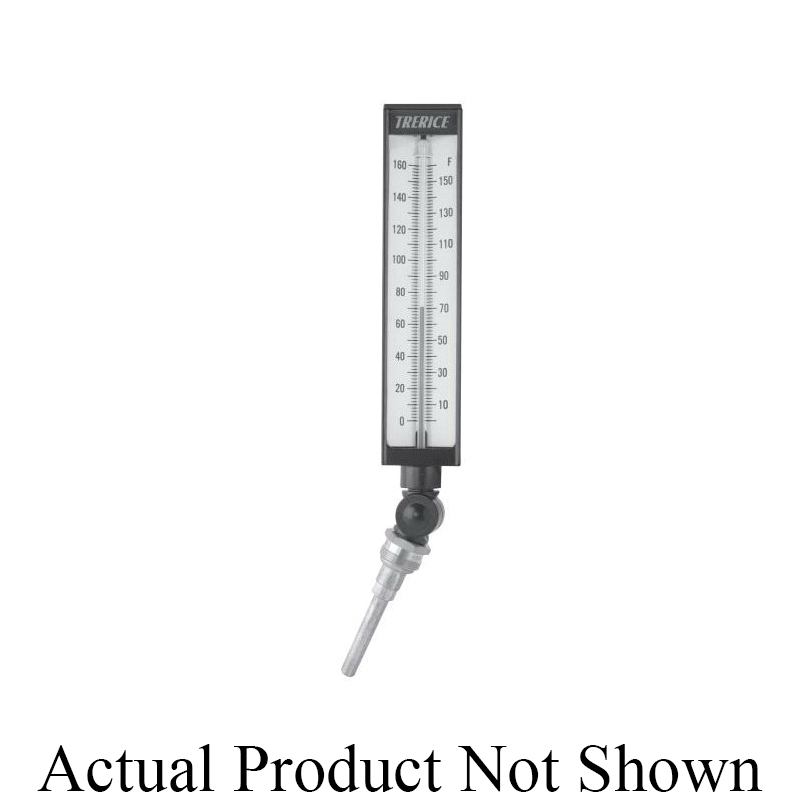

Trerice AX9-1-403-04 Industrial Thermometer, 0 to 160 deg F, +/-1 Divisions, +/-1%, 1-1/4 -18 UNEF-2A Adjustable Angle

CBPN:154260

MPN:AX9-1-403-04

Price:
$55.88 / EA

DESCRIPTION

Trerice Industrial Thermometer, Series: AX9, 0 to 160 deg F, +/-1 Scale Division, +/-1% Accuracy, 1-1/4 -18 UNEF-2A Adjustable Angle, 3-1/2 in Stem, Cast Aluminum Case, Aluminum Scale, Acrylic Window, 2.27 in L x 0.87 in W x 9.69 in H

Recognized globally as the Trerice inBX in Industrial Thermometer, this is an instrument of extreme accuracy and rugged dependability. Available in scale sizes of 7 in (AX9), 9 in (BX9) and 12 in (CX9), with a durable cast aluminum case, this universally adjustable, liquid-in-glass thermometer is the most widely specified instrument of its kind.

Trerice AX9-1-403-04 Industrial Thermometer, 0 to 160 deg F, +/-1 Divisions, +/-1%, 1-1/4 -18 UNEF-2A Adjustable Angle

CBPN:154260

MPN:AX9-1-403-04

Price:
$55.88 / EA

HO Trerice Logo

DESCRIPTION

Trerice Industrial Thermometer, Series: AX9, 0 to 160 deg F, +/-1 Scale Division, +/-1% Accuracy, 1-1/4 -18 UNEF-2A Adjustable Angle, 3-1/2 in Stem, Cast Aluminum Case, Aluminum Scale, Acrylic Window, 2.27 in L x 0.87 in W x 9.69 in H

Recognized globally as the Trerice inBX in Industrial Thermometer, this is an instrument of extreme accuracy and rugged dependability. Available in scale sizes of 7 in (AX9), 9 in (BX9) and 12 in (CX9), with a durable cast aluminum case, this universally adjustable, liquid-in-glass thermometer is the most widely specified instrument of its kind.

Specifications

BrandTrerice
Weight1.5 lbs
Temperature Rating0 to 160 deg F
Scale Divisions+/-1
Accuracy+/-1%
Process Connection1-1/4 -18 UNEF-2A Adjustable Angle
Case TypeCast Aluminum
Dimensions2.27 in L x 0.87 in W x 9.69 in H
Manufacturer NameH.O. Trerice
Scale MaterialAluminum
SeriesAX9
Stem Size3-1/2 in
Window MaterialAcrylic

Item Features

  • For applications where the process media may be corrosive or contained under pressure, the use of a thermowell is required to prevent damage to the thermometer and facilitate its removal from the process
  • 7 in adjustable angle scale
  • Blue colored and organic spirit
  • Cast aluminum case
  • Blue epoxy finish
  • Reversible mounting flange with 3 bolt holes air duct
  • Lens front and magnifying tube
  • Aluminum/white background with black graduations and marking scale
  • ABS top plate
