Titan® YS81S0100

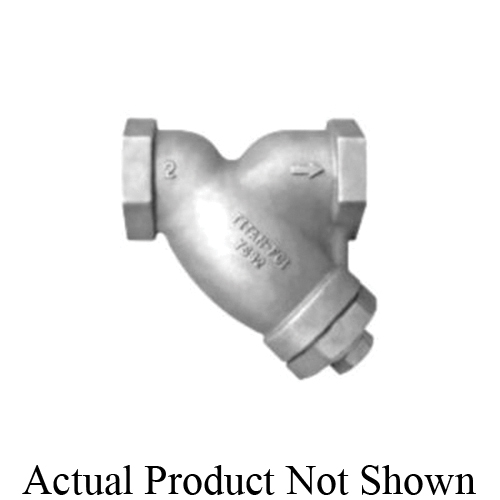

Titan® YS81S0100 YS81-SS Wye Strainer With Cap Cover, 1 in, 4.56 in OAL, FNPT Connection

CBPN:250904

MPN:YS81S0100

Price:
$217.38 / EA

DESCRIPTION

Titan® Wye Strainer, Series: YS81-SS, 1 in Nominal, 4.56 in Overall Length, 600#, 600#, FNPT, 3/8 in NPT Blow-Off, Stainless Steel Body, Grade CF8M

Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.

Titan® YS81S0100 YS81-SS Wye Strainer With Cap Cover, 1 in, 4.56 in OAL, FNPT Connection

CBPN:250904

MPN:YS81S0100

Price:
$217.38 / EA

Titan Flow Control Logo

DESCRIPTION

Titan® Wye Strainer, Series: YS81-SS, 1 in Nominal, 4.56 in Overall Length, 600#, 600#, FNPT, 3/8 in NPT Blow-Off, Stainless Steel Body, Grade CF8M

Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.

Specifications

BrandTitan®
Weight5 lbs
Nominal Size1 in
Body MaterialStainless Steel
Connection TypeFNPT
Pressure Class600 lb
Overall Length4.56 in
Blow-Off Size3/8 in NPT
GradeCF8M
Manufacturer NameTitan Flow Control
SeriesYS81-SS
ApplicationChemical, Food and Pharmaceutical Industries
Warranty1 Year
Standards and ApprovalsANSI Class 600 | ANSI/ASME B1.20.1 | ASME/ANSI B16.11 | ASME/ANSI B16.34 | ASTM A-351 Grade CF8M Body

Item Features

  • Rugged high quality design: The YS81 and YS82 are ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements
  • Large straining capacity: With its large body and sizeable straining element, provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
  • Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
