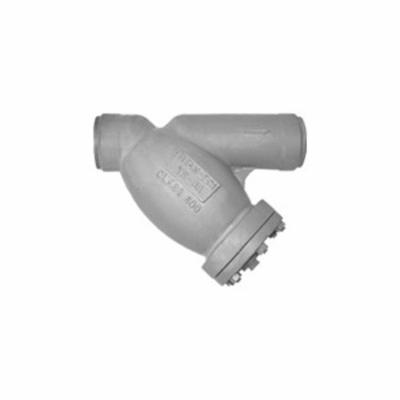

Titan® YS65C0400 YS65-CS Wye Strainer, 4 in Nominal, 17.938 in OAL, 600#, Butt Weld Connection
CBPN:250819
MPN:YS65C0400
Price:
$2005.05 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS65-CS, 4 in Nominal, 17.938 in Overall Length, 600#, Butt Weld Connection, 1-1/2 in NPT Blow-Off, Carbon Steel Body, Epoxy Painted, WCB Grade
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS65C0400 YS65-CS Wye Strainer, 4 in Nominal, 17.938 in OAL, 600#, Butt Weld Connection
CBPN:250819
MPN:YS65C0400
Price:
$2005.05 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS65-CS, 4 in Nominal, 17.938 in Overall Length, 600#, Butt Weld Connection, 1-1/2 in NPT Blow-Off, Carbon Steel Body, Epoxy Painted, WCB Grade
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 77 lbs
Nominal Size: 4 in
Body Material: Carbon Steel
Connection Type: Butt Weld
Pressure Class: 600 lb
Overall Length: 17.938 in
Blow-Off Size: 1-1/2 in NPT
Finish: Epoxy Painted
Grade: WCB
Manufacturer Name: Titan Flow Control
Series: YS65-CS
Application: Oil and Petrochemical Industries
Warranty: 1 Year
Standards and Approvals: ANSI Class 600 | ASME/ANSI B16.34 | ASTM A-216 Grade WCB Body
Item Features
- Large straining capacity: With its large body and sizeable straining element, the YS65 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Encapsulated "CG" style gasket: The "CG" style cover gasket provides additional radial strength to prevent gasket blowout, it also acts as a compression stop
- Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
- Epoxy painted: Carbon steel units are epoxy painted to help resist rust and corrosion
