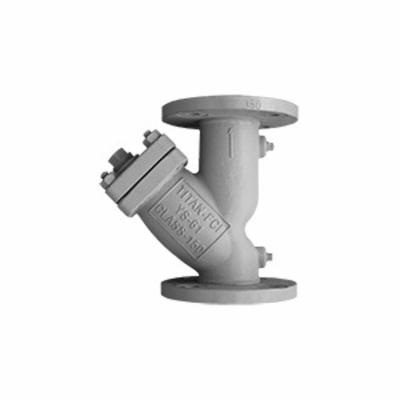

Titan® YS61C1000 YS61-CS Wye Strainer, 10 in Nominal, 26 in OAL, 150#, Raised Face Flanged Connection
CBPN:250744
MPN:YS61C1000
Price:
$3869.12 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Wye Strainer, Series: YS61-CS, 10 in Nominal, 26 in Overall Length, 150#, Raised Face Flanged, 2 in NPT Blow-Off, Carbon Steel Body, Epoxy Painted, Grade WCB
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS61C1000 YS61-CS Wye Strainer, 10 in Nominal, 26 in OAL, 150#, Raised Face Flanged Connection
CBPN:250744
MPN:YS61C1000
Price:
$3869.12 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Wye Strainer, Series: YS61-CS, 10 in Nominal, 26 in Overall Length, 150#, Raised Face Flanged, 2 in NPT Blow-Off, Carbon Steel Body, Epoxy Painted, Grade WCB
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 356 lbs
Nominal Size: 10 in
Body Material: Carbon Steel
Connection Type: Raised Face Flanged
Pressure Class: 150 lb
Overall Length: 26 in
Blow-Off Size: 2 in NPT
Finish: Epoxy Painted
Grade: WCB
Manufacturer Name: Titan Flow Control
Series: YS61-CS
Application: Oil and Petrochemical Industries
Standards and Approvals: ANSI Class 150 | ASME/ANSI B16.5 | ASME/ANSI B16.34 | A-351 Grade CF8M Cover
Item Features
- New design with gauge taps: Titan®'s YS61 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of sizes 2 in through 24 in
- These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary
- Large straining capacity: With its large body and sizeable straining element, the YS61 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
- Epoxy painted: Carbon steel units are epoxy painted to help resist rust and corrosion
