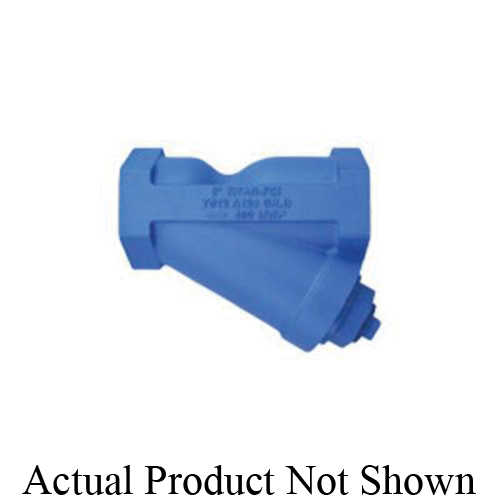

Titan® YS12I0050 YS12-CI Wye Strainer, 1/2 in Nominal, 3.188 in OAL, FNPT Connection, 250#, Grafoil Softgoods
CBPN:250639
MPN:YS12I0050
Price:
$10.15 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS12-CI, 1/2 in Nominal, 3.188 in Overall Length, 250#, FNPT, 1/4 in NPT Blow-Off, Grafoil, Cast Iron Body, Epoxy Painted, Grade B
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS12I0050 YS12-CI Wye Strainer, 1/2 in Nominal, 3.188 in OAL, FNPT Connection, 250#, Grafoil Softgoods
CBPN:250639
MPN:YS12I0050
Price:
$10.15 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS12-CI, 1/2 in Nominal, 3.188 in Overall Length, 250#, FNPT, 1/4 in NPT Blow-Off, Grafoil, Cast Iron Body, Epoxy Painted, Grade B
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 1.5 lbs
Nominal Size: 1/2 in
Body Material: Cast Iron
Connection Type: FNPT
Pressure Class: 250 lb
Softgoods Material: Grafoil
Overall Length: 3.188 in
Blow-Off Size: 1/4 in NPT
Finish: Epoxy Painted
Grade: B
Manufacturer Name: Titan Flow Control
Series: YS12-CI
Application: Pumps, Meters, Spray Nozzles, Compressors and Turbines
Warranty: 1 Year
Standards and Approvals: ANSI Class 250 | ASME/ANSI B16.4 | A-126 Grade B Body | FDA Approved | NSF/ANSI
Item Features
- Large straining capacity: With its large body and sizeable straining element, the YS12 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
- Epoxy painted: All units are epoxy painted to help resist rust and corrosion
- Threaded cap: Titan®'s YS12 has straight threads to permit easy cap removal for cleaning and proper alignment when reassembling strainer
- Natural gas and other special applications: Titan® has extensively tested the YS12 in gas applications and determined that buna-n gaskets provide superb sealing capabilities for the service
- Grafoil gasket
