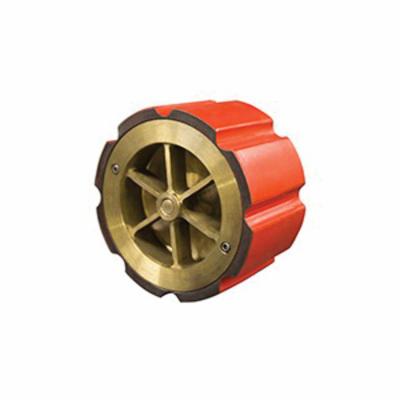

Titan® CV90DBB0400 CV90-DI Center Guided Wafer Silent Check Valve, 4 in, Flanged, 150/300 lb, Ductile Iron Body
CBPN:251519
UPC:046564019768
MPN:CV90DBB0400
Price:
$301.40 / EA
DESCRIPTION
Titan® Silent Check Valve, Center Guided Wafer, Series: CV90-DI, 4 in Nominal, Flanged, 250/640 psi WOG, 150/300 lb, 100 deg F, 4 in Inlet to Outlet Length, Ductile Iron Body, 300 Stainless Steel/Buna-N/Aluminum Bronze Trim, Epoxy Painted, 7 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Titan® CV90DBB0400 CV90-DI Center Guided Wafer Silent Check Valve, 4 in, Flanged, 150/300 lb, Ductile Iron Body
CBPN:251519
MPN:CV90DBB0400
UPC:046564019768
Price:
$301.40 / EA
DESCRIPTION
Titan® Silent Check Valve, Center Guided Wafer, Series: CV90-DI, 4 in Nominal, Flanged, 250/640 psi WOG, 150/300 lb, 100 deg F, 4 in Inlet to Outlet Length, Ductile Iron Body, 300 Stainless Steel/Buna-N/Aluminum Bronze Trim, Epoxy Painted, 7 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Specifications
Brand: Titan®
Weight: 17.5 lbs
Nominal Size: 4 in
End Style: Flanged
Pressure Class: 150/300 lb
Body Material: Ductile Iron
Dimensions: 7 in OD
Finish: Epoxy Painted
Inlet to Outlet Length: 4 in
Manufacturer Name: Titan Flow Control
Pressure Rating: 250/640 psi WOG
Series: CV90-DI
Temperature Rating: 100 deg F
Trim Material: 300 Stainless Steel/Buna-N/Aluminum Bronze
Type: Center Guided Wafer
Application: Oil and Gas Production, General Industry, Chemical, Petrochemical, Power, Food and Beverage Industries
Standards and Approvals: ANSI B16.42 | ANSI B16.5 | ASTM A536 Body | FM Approved Class 1230 | MSS SP-6 | MSS SP-25 | MSS SP-125
Item Features
- Designed for long service life: Newly designed CV90's have straightening vanes that reduce turbulence in incoming flow, thus minimizing noise, vibrations, erosion, cavitation's, and other factors that could result in premature valve failure
- Head loss is minimized by providing a large cross-sectional area which exceeds that of the adjacent pipeline
- Additionally, the spring loaded, center guided disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
- Quick closure to reduce water hammer: Silent shut-off is achieved via the fully automatic, spring assisted disc that closes near zero flow velocity
- The lightweight, center guided disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
- Versatile design: Sizes 2 in through 6 in utilize a unique scallop design that permits dual pressure service(ANSI class 150 and 300), sizes 8 in through 12 in are only rated for ANSI class 150
- Resilient soft seats (FKM/Buna-N) combined with precision machined sealing surfaces allow the CV90-DI to maintain a bubble seal that meets API 598 leakage requirements, metal seats can also be furnished
