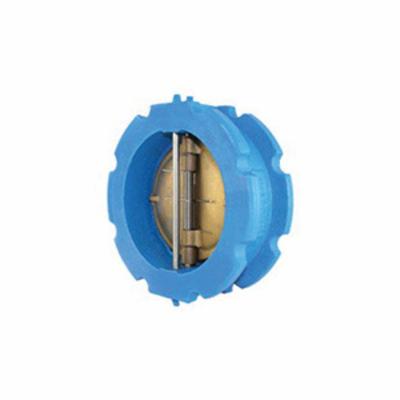

Titan® CV41DSV0800 CV 41-DI Dual Disc Wafer Check Valve, 8 in, Flanged, 150 lb, Ductile Iron Body
CBPN:251227
MPN:CV41DSV0800
Price:
$572.28 / EA
DESCRIPTION
Titan® Check Valve, Dual Disc Wafer, Series: CV 41-DI, 8 in Nominal, Flanged, 250 psi WOG, 150 lb, 100 deg F, 3-3/4 in Inlet to Outlet Length, Ductile Iron Body, 300 Stainless Steel/FKM Trim, Epoxy Painted, 11 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Titan® CV41DSV0800 CV 41-DI Dual Disc Wafer Check Valve, 8 in, Flanged, 150 lb, Ductile Iron Body
CBPN:251227
MPN:CV41DSV0800
Price:
$572.28 / EA
DESCRIPTION
Titan® Check Valve, Dual Disc Wafer, Series: CV 41-DI, 8 in Nominal, Flanged, 250 psi WOG, 150 lb, 100 deg F, 3-3/4 in Inlet to Outlet Length, Ductile Iron Body, 300 Stainless Steel/FKM Trim, Epoxy Painted, 11 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Specifications
Brand: Titan®
Weight: 43 lbs
Nominal Size: 8 in
End Style: Flanged
Pressure Class: 150 lb
Body Material: Ductile Iron
Dimensions: 11 in OD
Finish: Epoxy Painted
Inlet to Outlet Length: 3-3/4 in
Manufacturer Name: Titan Flow Control
Pressure Rating: 250 psi WOG
Series: CV 41-DI
Temperature Rating: 100 deg F
Trim Material: 300 Stainless Steel/FKM
Type: Dual Disc Wafer
Application: For liquids and gases where flow reversal can cause surge and water hammer
Warranty: 1 Year
Standards and Approvals: ANSI/API 594 | API 598 | ASME/ANSI 16.5 | ASME/ANSI B16.34 | ASME/ANSI B16.42 | ASTM A536 Body | FM Approved Class 1230
Item Features
- Cost efficient design: Low weight and short laying length produce savings in initial cost, space requirements, and installation when compared to full body, swing type check valves
- Minimal head loss: Contour of body provides a short and straight flow path that generates very little turbulence
- Additionally, the spring loaded disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
- Quick closure to reduce water hammer: Shut-off is achieved via the fully automatic, spring assisted discs that close near zero flow velocity
- The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
- Ductile iron body maintains the anti-corrosive properties of cast iron while achieving a yield strength comparable to carbon steel
- Ductile iron also offers higher pressure/temperature ratings than cast iron
- Versatile design: Sizes 2 in through 6 in are designed to fit bolt circle patterns for both cast iron ANSI classes 125/300 and ductile iron ANSI classes 150/300
- Resilient soft seats (EPDM, FKM or Buna-N) ensure a bubble tight seal that meets or exceeds API 598 test requirements
