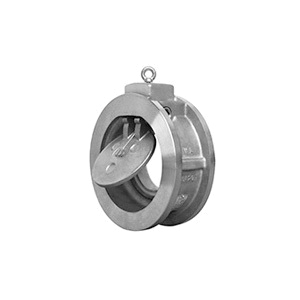

Titan® CV32SST0600 CV32-SS Single Disc Wafer Swing Check Valve, 6 in Nominal, Flanged End Style, 150 lb, PTFE Softgoods, Stainless Steel Body
CBPN:251182
UPC:046564016545
MPN:CV32SST0600
Price:
$1610.32 / EA
DESCRIPTION
Titan® Swing Check Valve, Single Disc Wafer, Series: CV32-SS, 6 in Nominal, Flanged End Style, 275 psi WOG Pressure, 150 lb Pressure Class, 100 deg F, No Low Lead Compliance, 3-3/4 in Inlet to Outlet Length, Stainless Steel Body, 316 Stainless Steel Trim, PTFE Softgoods, 8-5/8 in Dia
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Titan® CV32SST0600 CV32-SS Single Disc Wafer Swing Check Valve, 6 in Nominal, Flanged End Style, 150 lb, PTFE Softgoods, Stainless Steel Body
CBPN:251182
MPN:CV32SST0600
UPC:046564016545
Price:
$1610.32 / EA
DESCRIPTION
Titan® Swing Check Valve, Single Disc Wafer, Series: CV32-SS, 6 in Nominal, Flanged End Style, 275 psi WOG Pressure, 150 lb Pressure Class, 100 deg F, No Low Lead Compliance, 3-3/4 in Inlet to Outlet Length, Stainless Steel Body, 316 Stainless Steel Trim, PTFE Softgoods, 8-5/8 in Dia
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Specifications
Brand: Titan®
Weight: 14 lbs
Nominal Size: 6 in
End Style: Flanged
Pressure Class: 150 lb
Low Lead Compliance: No
Softgoods Material: PTFE
Body Material: Stainless Steel
Dimensions: 8-5/8 in Dia
Inlet to Outlet Length: 3-3/4 in
Manufacturer Name: Titan Flow Control
Pressure Rating: 275 psi WOG
Series: CV32-SS
Temperature Rating: 100 deg F
Trim Material: 316 Stainless Steel
Type: Single Disc Wafer
Application: General, Chemical, Petrochemical, Power, Food and Beverage Industries
Standards and Approvals: AISI Standard Disc | ANSI B16.5/B16.10/ B16.34 | API 598 | ASTM A351 Grade CF8M Body | MSS SP-6/SP-25/SP-55
Item Features
- Economical design - Low weight and short laying length produce savings in initial cost, space requirements and installation when compared to full body, swing type check valves
- Minimal head loss - Head loss is minimized by providing a short, straight and virtually unobstructed flow path
- Additionally, the spring loaded disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
- Quick closure to reduce water hammer - Shut-off is achieved via the fully automatic, spring assisted disc that closes near zero flow velocity
- The lightweight, single disc design creates a positive shut-off prior to flow reversal which helps to keep surges to a minimum
- Feature anti-corrosive, stainless steel trim (disc, spring, shaft) as standard
- Resilient soft seats (FKM and PTFE O-ring) coupled with precision machined sealing surfaces help to ensure a bubble tight seal that meets or exceeds API 598 test requirements
- PTFE O-ring
