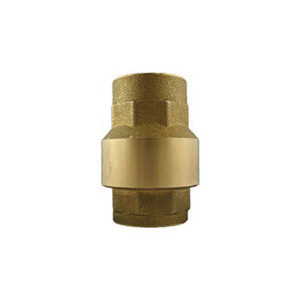

Titan® CV20BR0150 CV20-BR Single Disc Silent Check Valve, 1-1/2 in, NPT, Brass Body
CBPN:179043
MPN:CV20BR0150
DESCRIPTION
Titan® Silent Check Valve, Single Disc, Series: CV20-BR, 1-1/2 in Nominal Size, NPT, 400 psi WOG, 100 deg F, 3.17 in Inlet to Outlet Length, Brass Body, Buna-N/Stainless Steel Trim, 2.87 in H
Titan®'s Threaded End, Check Valves are designed to automatically prevent back-flow in systems where it is desirable to permit flow in one direction and prevent flow in the opposite direction. When the pump starts and the downstream flow creates the required pressure drop in the forward direction, the poppet will automatically open. When the pump stops and the flow ceases, the force of the spring will automatically close the poppet prior to flow reversal. This creates a positive shutoff against flow reversal and eliminates system surges and water hammer.
Titan® CV20BR0150 CV20-BR Single Disc Silent Check Valve, 1-1/2 in, NPT, Brass Body
CBPN:179043
MPN:CV20BR0150
DESCRIPTION
Titan® Silent Check Valve, Single Disc, Series: CV20-BR, 1-1/2 in Nominal Size, NPT, 400 psi WOG, 100 deg F, 3.17 in Inlet to Outlet Length, Brass Body, Buna-N/Stainless Steel Trim, 2.87 in H
Titan®'s Threaded End, Check Valves are designed to automatically prevent back-flow in systems where it is desirable to permit flow in one direction and prevent flow in the opposite direction. When the pump starts and the downstream flow creates the required pressure drop in the forward direction, the poppet will automatically open. When the pump stops and the flow ceases, the force of the spring will automatically close the poppet prior to flow reversal. This creates a positive shutoff against flow reversal and eliminates system surges and water hammer.
Specifications
Item Features
- Quick closure to reduce water hammer - Silent shut-off is achieved via the fully automatic, spring assisted disc that closes near zero flow velocity
- The lightweight, center guided disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
- Versatile and economic design - Can be installed in any position (horizontal or vertical with upward flow)
- By utilizing a Buna-N seat and a patented disc guide, the CV20-BZ in-line check valve maintains a bubble tight seal that meets or exceeds API 598 leakage requirements
- Minimal head loss - The contour of body and check module provide a flow profile that generates very little turbulence
- Additionally, the spring loaded, center guided disc is designed with low cracking pressure which reduces the amount of energy required to open the valve
- Designed for long service life - Highly advanced materials coupled with a patented disc design can provide a long service life for a wide variety of applications
