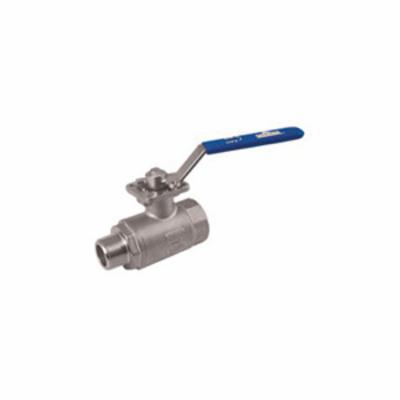

Titan® BV25S0125 2-Piece Direct Mount High Pressure Blow-Off Drain Ball Valve With Lock Handle, 1-1/4 in Nominal, MNPT x FNPT End Style, Stainless Steel Body, Full Port, FKM/PTFE Softgoods
CBPN:251541
MPN:BV25S0125
Price:
$637.58 / EA
DESCRIPTION
Titan® Blow-Off Drain Ball Valve, 2-Piece Direct Mount High Pressure, Series: BV25, 1-1/4 in Nominal, MNPT x FNPT End Style, 3000 psi WOG Pressure, 100 deg F, Full Port, 1.141 in Orifice, Stainless Steel Ball, 4.33 in Inlet to Outlet Length, 3.661 in Top to Inlet Center, Stainless Steel Body, Delrin®/T-316 Stainless Steel Stem Trim, FKM/PTFE Softgoods
Titan® BV25S0125 2-Piece Direct Mount High Pressure Blow-Off Drain Ball Valve With Lock Handle, 1-1/4 in Nominal, MNPT x FNPT End Style, Stainless Steel Body, Full Port, FKM/PTFE Softgoods
CBPN:251541
MPN:BV25S0125
Price:
$637.58 / EA
DESCRIPTION
Titan® Blow-Off Drain Ball Valve, 2-Piece Direct Mount High Pressure, Series: BV25, 1-1/4 in Nominal, MNPT x FNPT End Style, 3000 psi WOG Pressure, 100 deg F, Full Port, 1.141 in Orifice, Stainless Steel Ball, 4.33 in Inlet to Outlet Length, 3.661 in Top to Inlet Center, Stainless Steel Body, Delrin®/T-316 Stainless Steel Stem Trim, FKM/PTFE Softgoods
Specifications
Brand: Titan®
Weight: 5 lbs
Nominal Size: 1-1/4 in
End Style: MNPT x FNPT
Pressure Rating: 3000 psi WOG
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: FKM/PTFE
Ball Material: Stainless Steel
Inlet to Outlet Length: 4.33 in
Manufacturer Name: Titan Flow Control
Orifice Size: 1.141 in
Series: BV25
Temperature Rating: 100 deg F
Top to Inlet Center: 3.661 in
Trim Material: Delrin®/T-316 Stainless Steel Stem
Type: 2-Piece Direct Mount High Pressure
Application: Strainer Clean Out
Standards and Approvals: API 607-4 | CF8M Body
Item Features
- Full port design offers complete and rapid cleaning of strainer screen
- Ideal blow-off valve for high pressure strainers ANSI class 600 lb, 900 lb and 1500 lb
- Locking handle with quick quarter-turn operation
- Male thread ends mount directly into strainer blow-off connection
- FKM O-ring and PTFE stem packing ball seal
