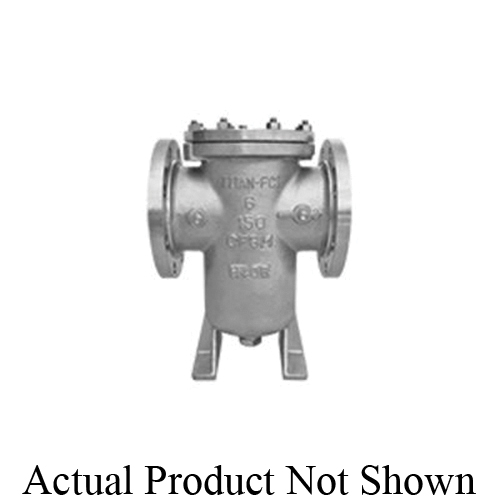

Titan® BS85S0200 BS85-SS Simplex Basket Strainer With Stainless Steel Bolted Cover, 2 in Nominal, 8-1/2 in OAL, ANSI 150 Flanged Connection, Stainless Steel, Cover Gasket Buna-N
CBPN:251093
MPN:BS85S0200
Price:
$1176.93 / EA
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS85-SS, 2 in Nominal, 8-1/2 in Overall Length, ANSI 150 Flanged Connection, Stainless Steel, CF8M Grade
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Titan® BS85S0200 BS85-SS Simplex Basket Strainer With Stainless Steel Bolted Cover, 2 in Nominal, 8-1/2 in OAL, ANSI 150 Flanged Connection, Stainless Steel, Cover Gasket Buna-N
CBPN:251093
MPN:BS85S0200
Price:
$1176.93 / EA
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS85-SS, 2 in Nominal, 8-1/2 in Overall Length, ANSI 150 Flanged Connection, Stainless Steel, CF8M Grade
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Specifications
Brand: Titan®
Weight: 27 lbs
Nominal Size: 2 in
Material: Stainless Steel
Connection Type: ANSI 150 Flange
Pressure Class: 150 lb
Cover Gasket: Buna-N
Grade: CF8M
Manufacturer Name: Titan Flow Control
Overall Length: 8-1/2 in
Series: BS85-SS
Application: Chemical, Food and Pharmaceutical Industries
Standards and Approvals: A351 Grade CF8M Body and Cover | ANSI Class 150 | ANSI/MSS SP-55 | ASME/ANSI B16.5
Item Features
- High quality construction: The basket strainer boasts many unique design features including inlet/outlet bosses with gauge taps, spot faced flange bolt holes, plugged bottom drain and cover vent, epoxy painted carbon bodies, encapsulated cover gasket
- Pressure loss is minimized by providing a slanted straining element design and straight flow path
- Plugged, NPT taps are provided (near the inlet and outlet on both sides) allowing for the quick mounting of pressure gauges to monitor pressure loss
- Large straining capacity: With its large body and sizeable straining element, The BS85 has The ability to store large quantities of debris without affecting pressure loss thus maximizing time between servicing
- The standard material for straining elements is type 304 stainless steel
