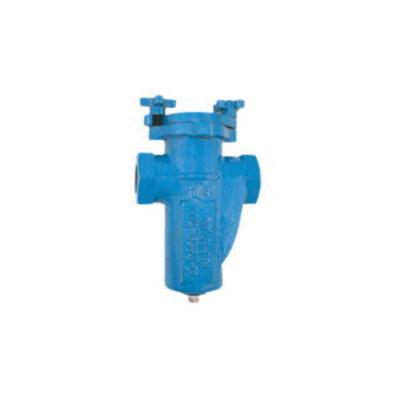

Titan® BS25I0200 Simplex Basket Strainer With Carbon Steel Quick-Open Knob Cover, 2 in, FNPT, 125 lb, 8-1/4 in OAL, Cast Iron, Cover Gasket Buna-N
CBPN:172139
UPC:046564015111
MPN:BS25I0200
Price:
$251.74 / EA
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS25-CI, 2 in Nominal Size, 8-1/4 in Overall Length, FNPT Connection, Cast Iron, Epoxy Painted, Grade: B
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Titan® BS25I0200 Simplex Basket Strainer With Carbon Steel Quick-Open Knob Cover, 2 in, FNPT, 125 lb, 8-1/4 in OAL, Cast Iron, Cover Gasket Buna-N
CBPN:172139
MPN:BS25I0200
UPC:046564015111
Price:
$251.74 / EA
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS25-CI, 2 in Nominal Size, 8-1/4 in Overall Length, FNPT Connection, Cast Iron, Epoxy Painted, Grade: B
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Specifications
Brand: Titan®
Weight: 27 lbs
Nominal Size: 2 in
Material: Cast Iron
Connection Type: FNPT
Pressure Class: 125 lb
Cover Gasket: Buna-N
Finish: Epoxy Painted
Grade: B
Manufacturer Name: Titan Flow Control
Overall Length: 8-1/4 in
Series: BS25-CI
Application: Water and Waste Water, Pulp and Paper, Chemical and Petrochemical, Petroleum, Oil and Gas, Transportation, Marine Industry and Food Industry
Warranty: 1 Year
Standards and Approvals: A516-70 Cover | ANSI Class 125 | ASME/ANSI B16.4 | ASTM A126 Body | FDA Approved | NSF/ANSI
Item Features
- Versatile, high quality construction: Epoxy painted cast iron bodies, plugged drain connections and safety vents in, a quick open cover comes standard
- Pressure loss is minimized by providing an over the top flow path and large open area ratio, the straining capacity is a minimum of six times that of the connecting pipe
- Large straining capacity: With its large body and sizeable straining element, this basket strainer has the ability to store large quantities of debris-thus maximizing time between servicing
- It also features a machined seat with O-ring that enables fine filtrations down to 40 micron
- The standard material for straining elements is type 304 stainless steel
