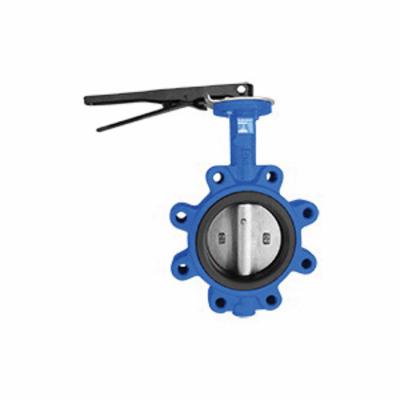

Titan® BF76DBB0600 Resilient Seated Lug Style Butterfly Valve, 6 in Nominal, Flanged End Style, 150 lb, Ductile Iron Body, Buna-N Softgoods
CBPN:251617
MPN:BF76DBB0600
Price:
$257.11 / EA
DESCRIPTION
Titan® Butterfly Valve, Resilient Seated Lug Style, Series: BF76, 6 in Nominal, Flanged, 150 lb, 10 Position Handle Actuator, Ductile Iron Body, Aluminum Bronze Disc, 410 Stainless Steel (Stem)/(Pin) Stem & Pin Material, Buna-N, Blue
Butterfly Valves are lightweight, quarter-turn valves used for regulating or isolating pipeline flow. Titan® Flow Control offers them in Wafer (Cast Iron) and Lug (Ductile Iron) styles.
Titan® BF76DBB0600 Resilient Seated Lug Style Butterfly Valve, 6 in Nominal, Flanged End Style, 150 lb, Ductile Iron Body, Buna-N Softgoods
CBPN:251617
MPN:BF76DBB0600
Price:
$257.11 / EA
DESCRIPTION
Titan® Butterfly Valve, Resilient Seated Lug Style, Series: BF76, 6 in Nominal, Flanged, 150 lb, 10 Position Handle Actuator, Ductile Iron Body, Aluminum Bronze Disc, 410 Stainless Steel (Stem)/(Pin) Stem & Pin Material, Buna-N, Blue
Butterfly Valves are lightweight, quarter-turn valves used for regulating or isolating pipeline flow. Titan® Flow Control offers them in Wafer (Cast Iron) and Lug (Ductile Iron) styles.
Specifications
Brand: Titan®
Weight: 26.5 lbs
Nominal Size: 6 in
End Style: Flanged
Pressure Class: 150 lb
Body Material: Ductile Iron
Type: Resilient Seated Lug Style
Softgoods Material: Buna-N
Actuator Type: 10 Position Handle
Color: Blue
Disc Material: Aluminum Bronze
Manufacturer Name: Titan Flow Control
Series: BF76
Stem & Pin Material: 410 Stainless Steel (Stem)/(Pin)
Application: Inline Shut-Off, Strainer and Pump Isolation
Standards and Approvals: API 598/609 | ASME/ANSI Specified | ASME B16.42 | ASTM A536 | MSS SP-25/SP-67 Type II
Item Features
- Universal mounting flange - The cast-in actuator flange is universally designed in accordance with ISO 5211 standard dimensions
- The mounting flange can accommodate all types of operators such as - 10-position handle kits, gear operators, electric actuators, and pneumatic actuators, for actuators Titan® FCI may provide both direct mount and bracket mount designs
- The extended neck provides clearance for 2 in of piping insulation, also It elevates mounted actuators for easier access, stem extensions are available to further elevate the operating location of the valve
- 1-piece through stem design - The 1-piece, double 'D' stem design offers exceptionally high strength, stability, dependability and accurate disc positioning
- Equipped with double 'D' style stems
- Buna-N O-ring
