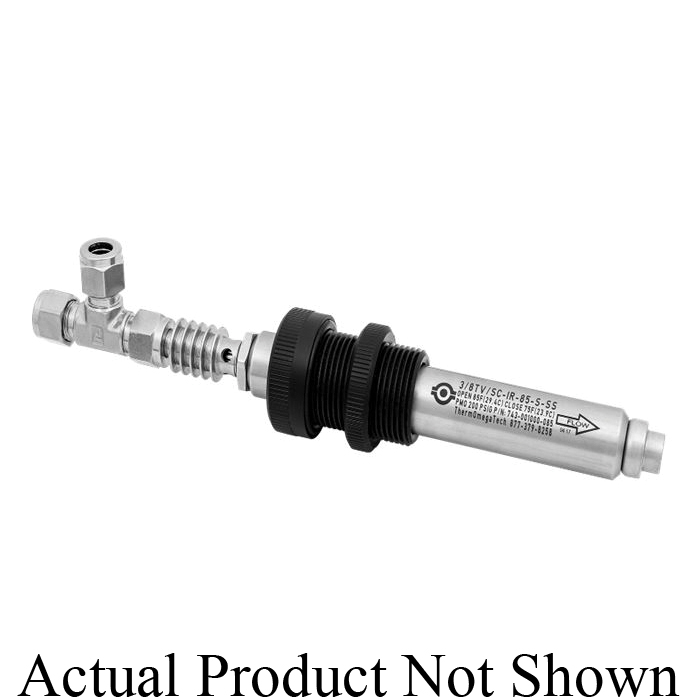

ThermOmegaTech® 733-001000-090 TV/SC-I Temperature Control Valve, 3/8 in Nominal, NPT End Style, 200 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN:258511
MPN:733-001000-090
DESCRIPTION
ThermOmegaTech® Temperature Control Valve, Series: TV/SC-I, 3/8 in Nominal, NPT End Style, 200 psig Pressure, 150 deg F Sensing End/388 deg F Valve End, Media: Air, Fluids, Gases, Oil, Steam, Water, Thermal Insulator Handle Actuator, 1.2 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 10 in L Dimensions, Domestic, Model 3/8 TV/SC-I-90-S-SS
The TV/SC-I is an instrument enclosure or analyzer housing Temperature Control Valve designed to monitor and regulate the flow of steam to maintain a desired temperature inside the enclosure at all times. The TV/SC-I (Tube Valve/Steam Control Instrument Enclosure) valve is installed into the wall of the enclosure so that the thermal actuator end is inside to sense the ambient temperature. The thermostatic wax actuator regulates the steam supply to the heater to accurately maintain the desired temperature, operating like a thermostat in an oven. Heat radiating from the steam coil heater reaches the actuator and will cause it to quickly shut off the steam supply when the desired temperature is reached, regardless of outside ambient to provide the optimal temperature within the enclosure and reduce wasted steam costs.
ThermOmegaTech® 733-001000-090 TV/SC-I Temperature Control Valve, 3/8 in Nominal, NPT End Style, 200 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN:258511
MPN:733-001000-090
DESCRIPTION
ThermOmegaTech® Temperature Control Valve, Series: TV/SC-I, 3/8 in Nominal, NPT End Style, 200 psig Pressure, 150 deg F Sensing End/388 deg F Valve End, Media: Air, Fluids, Gases, Oil, Steam, Water, Thermal Insulator Handle Actuator, 1.2 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 10 in L Dimensions, Domestic, Model 3/8 TV/SC-I-90-S-SS
The TV/SC-I is an instrument enclosure or analyzer housing Temperature Control Valve designed to monitor and regulate the flow of steam to maintain a desired temperature inside the enclosure at all times. The TV/SC-I (Tube Valve/Steam Control Instrument Enclosure) valve is installed into the wall of the enclosure so that the thermal actuator end is inside to sense the ambient temperature. The thermostatic wax actuator regulates the steam supply to the heater to accurately maintain the desired temperature, operating like a thermostat in an oven. Heat radiating from the steam coil heater reaches the actuator and will cause it to quickly shut off the steam supply when the desired temperature is reached, regardless of outside ambient to provide the optimal temperature within the enclosure and reduce wasted steam costs.
Specifications
Item Features
- Self-operating - no external power source required
- Maintains enclosure temperature within a specified range
- Eliminates danger of overheating and explosion hazard
- Exclusive self-actuating Thermoloid® wax blend thermal actuator
- Stainless steel body, fittings, spring and plug
- Standard tube connections for quick and easy installation
- A #20 mesh strainer is recommended
- 90 deg F open/100 deg F close temperature
