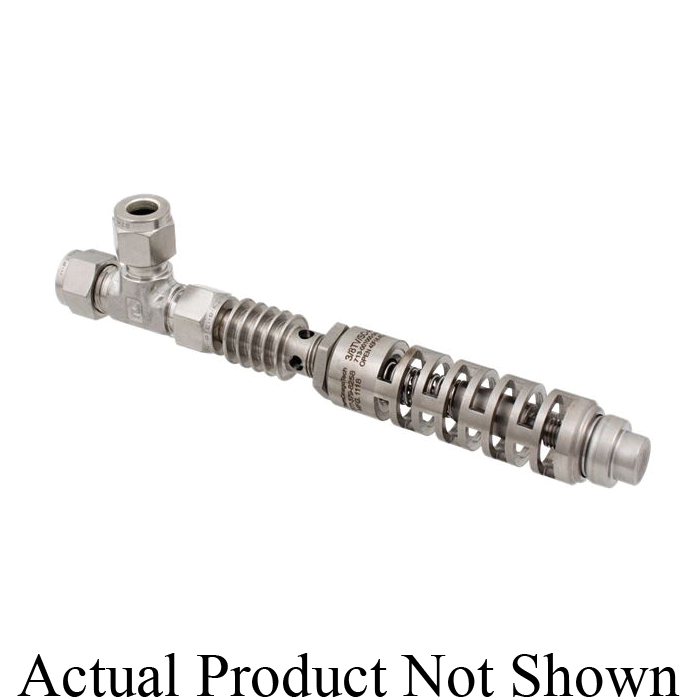

ThermOmegaTech® 713-011000-150 TV/SC-A Ambient Temperature Control Valve, 3/8 in Nominal, NPT End Style, 200 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN:257657
MPN:713-011000-150
DESCRIPTION
ThermOmegaTech® Ambient Temperature Control Valve, Series: TV/SC-A, 3/8 in Nominal, NPT End Style, 200 psig Pressure, 150 deg F Sensing End/388 deg F Valve End, Media: Air, Gas, Liquids, Steam, Thermal Insulator Handle Actuator, 1.2 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 7.4 in L Dimensions, Domestic, Model 3/8 TV/SC-A-150-S-SS-SW
The TV/SC-A is a thermostatic steam control temperature valve designed to automatically regulate flow in response to ambient temperature changes to protect facility pipelines and enclosures from freezing. The thermostatic actuator located at one end of the TV/SC-A (thermally isolated from the body of the valve), will automatically open or close within a 10 deg F (5.6 deg C) differential (e.g. 35 to 45 deg F) to provide an optimal fluid temperature. The steam tracing control valve is normally closed and will begin to open to inject steam or another fluid when the ambient temperature drops below the valve's set point. The valves will close again once the air temperature rises back above the valve's set point, saving thousands of dollars in wasted operating costs. Most often used in steam tracing applications, these self-actuating valves can also be used in the operation of pneumatically operated pumps for injection of anti-freeze liquids and instrument enclosure temperature control.
ThermOmegaTech® 713-011000-150 TV/SC-A Ambient Temperature Control Valve, 3/8 in Nominal, NPT End Style, 200 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN:257657
MPN:713-011000-150
DESCRIPTION
ThermOmegaTech® Ambient Temperature Control Valve, Series: TV/SC-A, 3/8 in Nominal, NPT End Style, 200 psig Pressure, 150 deg F Sensing End/388 deg F Valve End, Media: Air, Gas, Liquids, Steam, Thermal Insulator Handle Actuator, 1.2 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 7.4 in L Dimensions, Domestic, Model 3/8 TV/SC-A-150-S-SS-SW
The TV/SC-A is a thermostatic steam control temperature valve designed to automatically regulate flow in response to ambient temperature changes to protect facility pipelines and enclosures from freezing. The thermostatic actuator located at one end of the TV/SC-A (thermally isolated from the body of the valve), will automatically open or close within a 10 deg F (5.6 deg C) differential (e.g. 35 to 45 deg F) to provide an optimal fluid temperature. The steam tracing control valve is normally closed and will begin to open to inject steam or another fluid when the ambient temperature drops below the valve's set point. The valves will close again once the air temperature rises back above the valve's set point, saving thousands of dollars in wasted operating costs. Most often used in steam tracing applications, these self-actuating valves can also be used in the operation of pneumatically operated pumps for injection of anti-freeze liquids and instrument enclosure temperature control.
Specifications
Item Features
- Self-operating - no external power source required
- Reduces operating and labor costs associated with winterization procedures
- Eliminates steam waste in tracing
- Exclusive self-actuating Thermoloid® wax blend thermal actuator
- Large flow coefficient (Cv)
- Standard tube connections for quick and easy installation
- A #20 mesh strainer is recommended
- 150 deg F open/160 deg F close temperature
