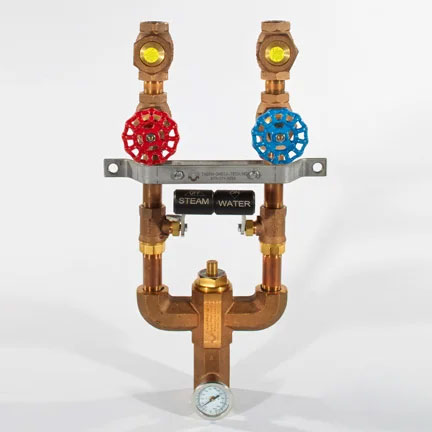

ThermOmegaTech® STVM® 377-111000-115 TOT Steam/Water Washdown Station, 6-1/2 in Center, Domestic
CBPN:255086
MPN:377-111000-115
DESCRIPTION
ThermOmegaTech® STVM® Washdown Station, Steam/Water, Series: TOT, 6-1/2 in Center Distance, 1/2 in MNPT Swivel x 3/4 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 20.17 in L x 6.5 in W x 20.8 in H Dimensions, Domestic, Model TOT Washdown Station 115F
The STVM® Steam and Water Washdown Station is designed for high temperature washdown to maximize efficiency and minimize downtime in food processing, dairy, breweries, wineries, chemical, petrochemical and pharmaceutical facilities where a high-temperature washdown is required. ThermOmegaTech® STVM® Washdown Station incorporates a unique Venturi mixing technology to deliver water at the required temperature quickly, quietly and on-demand. The cartridge of the STVM® valve can be quickly and easily removed as a single assembly by simply unscrewing the valve cap. This allows easy cleaning and in-line servicing of the station. The STVM® Washdown Station has two built-in safety features - interlocking ball valves to prevent steam-only operation and an automatic shut-off when output is 15 deg F over the unit's temperature set point (either 150 deg F or 185 deg F) or when cold water flow is interrupted.
ThermOmegaTech® STVM® 377-111000-115 TOT Steam/Water Washdown Station, 6-1/2 in Center, Domestic
CBPN:255086
MPN:377-111000-115
DESCRIPTION
ThermOmegaTech® STVM® Washdown Station, Steam/Water, Series: TOT, 6-1/2 in Center Distance, 1/2 in MNPT Swivel x 3/4 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 20.17 in L x 6.5 in W x 20.8 in H Dimensions, Domestic, Model TOT Washdown Station 115F
The STVM® Steam and Water Washdown Station is designed for high temperature washdown to maximize efficiency and minimize downtime in food processing, dairy, breweries, wineries, chemical, petrochemical and pharmaceutical facilities where a high-temperature washdown is required. ThermOmegaTech® STVM® Washdown Station incorporates a unique Venturi mixing technology to deliver water at the required temperature quickly, quietly and on-demand. The cartridge of the STVM® valve can be quickly and easily removed as a single assembly by simply unscrewing the valve cap. This allows easy cleaning and in-line servicing of the station. The STVM® Washdown Station has two built-in safety features - interlocking ball valves to prevent steam-only operation and an automatic shut-off when output is 15 deg F over the unit's temperature set point (either 150 deg F or 185 deg F) or when cold water flow is interrupted.
Specifications
Item Features
- Self-operating, no external power source required
- In-line serviceable mixing valve with easy to replace/clean cartridge - no special tools required
- Resistant to the effects of mineral build-up and scaling
- Exclusive self-actuating Thermoloid® wax blend thermal actuator
- Interlocking ball valves prevent steam only operation
- Unique venturi mixing design minimizes water hammer effect
- Maximum water output - 115 deg F (150 psig)
