ThermOmegaTech SVTM Cartridge Assembly Stainless Steel

ThermOmegaTech® 374-012000-185 STVM® Cartridge Assembly, For Use With STVM® Series Steam/Water Washdown Station Mixing Valves, 185 deg F, Stainless Steel, Domestic

CBPN:255094

MPN:374-012000-185

Price:
$1080.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Cartridge Assembly, Series: STVM®, For Use With: STVM® Series Steam/Water Washdown Station Mixing Valves, Specifications: 185 deg F, Stainless Steel, 6-1/2 in L x 2 in W Dimensions, Domestic, Model STVM SS Cartridge 185F

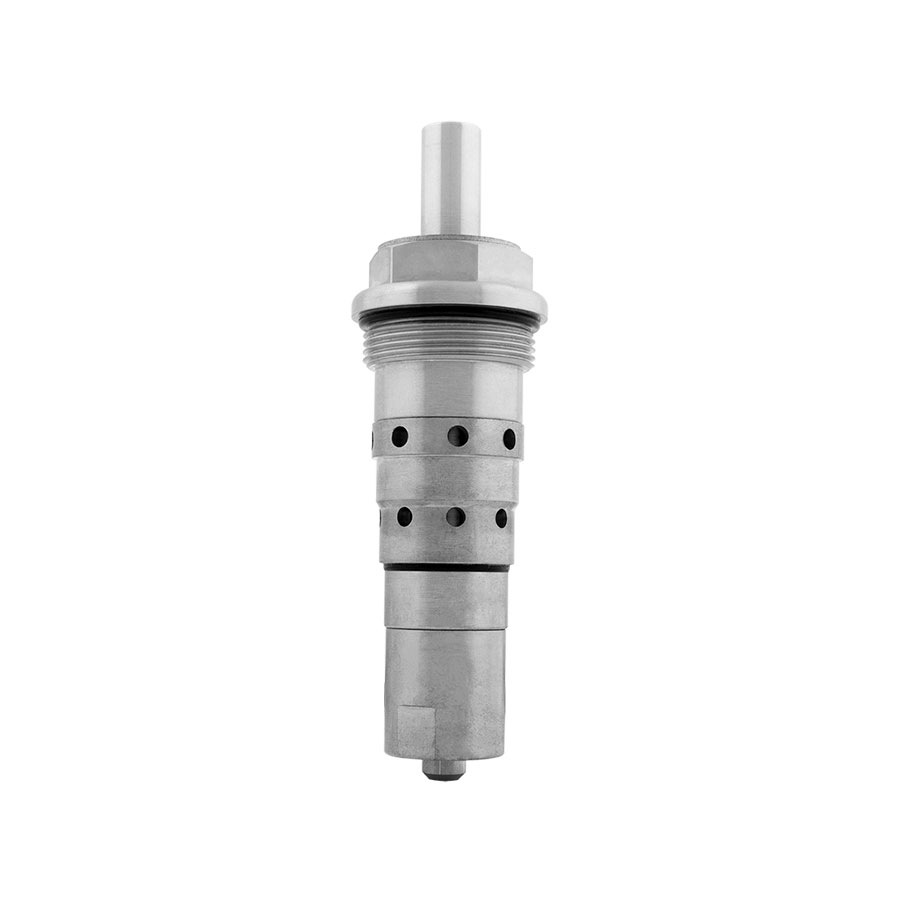

The STVM® Cartridge Assembly is a removable cartridge designed for the STVM® Steam and Water Washdown Station mixing valve. This replacement cartridge can be purchased separately to expedite maintenance routines and minimize downtime at production facilities. The STVM® Cartridge Assembly can be replaced in an installed STVM® washdown station in minutes by simply unscrewing the cartridge in the station with a standard wrench and inserting the new one. The used cartridge can then be cleaned by emerging it in a descaling solution, inspected and reused.

ThermOmegaTech® 374-012000-185 STVM® Cartridge Assembly, For Use With STVM® Series Steam/Water Washdown Station Mixing Valves, 185 deg F, Stainless Steel, Domestic

CBPN:255094

MPN:374-012000-185

Price:
$1080.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® Cartridge Assembly, Series: STVM®, For Use With: STVM® Series Steam/Water Washdown Station Mixing Valves, Specifications: 185 deg F, Stainless Steel, 6-1/2 in L x 2 in W Dimensions, Domestic, Model STVM SS Cartridge 185F

The STVM® Cartridge Assembly is a removable cartridge designed for the STVM® Steam and Water Washdown Station mixing valve. This replacement cartridge can be purchased separately to expedite maintenance routines and minimize downtime at production facilities. The STVM® Cartridge Assembly can be replaced in an installed STVM® washdown station in minutes by simply unscrewing the cartridge in the station with a standard wrench and inserting the new one. The used cartridge can then be cleaned by emerging it in a descaling solution, inspected and reused.

Specifications

BrandThermOmegaTech®
Weight1.8 lbs
MaterialStainless Steel
Temperature Set Point185 F
Suitable For Use WithSTVM® Series Steam/Water Washdown Station Mixing Valves
Specifications185 deg F
Dimensions6-1/2 in L x 2 in W
Manufacturer NameThermOmegaTech
SeriesSTVM®
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsPROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov

Item Features

  • Simplifies installation and maintenance procedures
  • Minimizes downtime by allowing you to service the station in the field
  • Can be cleaned and reused
  • Exclusive self-actuating Thermoloid® wax blend thermal actuator
  • Easily interchangeable cartridge with a single moving element
