ThermOmegaTech® 356-012000-090

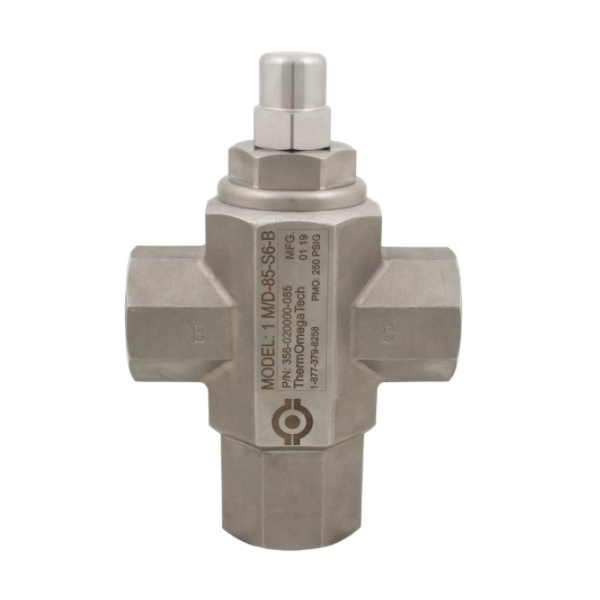

ThermOmegaTech® 356-012000-090 300 Series 3-Way Mixing/Diverting Valve, 1 in Nominal, NPT End Style, 250 psig Pressure, 303 Stainless Steel Body, Domestic

CBPN:258187

MPN:356-012000-090

Price:
$1199.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Mixing/Diverting Valve, 3-Way, Series: 300, 1 in Nominal, NPT End Style, 250 psig Pressure, 150 lb Pressure Class, 250 deg F, Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 4.37 in Inlet to Outlet Length, 303 Stainless Steel Body, EPDM Softgoods, 6.7 in H Dimensions, Domestic, Model 1 M/D-90-S6SS-E

The 3-way Mixing and Diverting thermostatic temperature control valves use a thermal actuator to accurately proportion and maintain flow in response to temperature in a variety of industrial, aerospace and defense applications. In mixing applications where a controlled temperature outlet is required, the M/D valve will modulate between the hot and cold inlet feeds (ports "B" and "C") to mix your fluid to the desired specified temperature exiting the "A" port. In diverting applications where the fluid must be directed from one section of a system to another, the M/D will operate like a thermal bypass valve to modulate inlet fluid temperature and divert return flow through a heat exchanger or bypass it to a reservoir when fluid temperatures are satisfied. This action assures rapid system warm-up, accurate control of fluid temperature and reduced back pressure in the return.

ThermOmegaTech® 356-012000-090 300 Series 3-Way Mixing/Diverting Valve, 1 in Nominal, NPT End Style, 250 psig Pressure, 303 Stainless Steel Body, Domestic

CBPN:258187

MPN:356-012000-090

Price:
$1199.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® Mixing/Diverting Valve, 3-Way, Series: 300, 1 in Nominal, NPT End Style, 250 psig Pressure, 150 lb Pressure Class, 250 deg F, Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 4.37 in Inlet to Outlet Length, 303 Stainless Steel Body, EPDM Softgoods, 6.7 in H Dimensions, Domestic, Model 1 M/D-90-S6SS-E

The 3-way Mixing and Diverting thermostatic temperature control valves use a thermal actuator to accurately proportion and maintain flow in response to temperature in a variety of industrial, aerospace and defense applications. In mixing applications where a controlled temperature outlet is required, the M/D valve will modulate between the hot and cold inlet feeds (ports "B" and "C") to mix your fluid to the desired specified temperature exiting the "A" port. In diverting applications where the fluid must be directed from one section of a system to another, the M/D will operate like a thermal bypass valve to modulate inlet fluid temperature and divert return flow through a heat exchanger or bypass it to a reservoir when fluid temperatures are satisfied. This action assures rapid system warm-up, accurate control of fluid temperature and reduced back pressure in the return.

Specifications

BrandThermOmegaTech®
Weight5 lbs
Nominal Size1 in
End StyleNPT
Pressure Rating250 psig
Body Material303 Stainless Steel
Actuator TypeThermal Insulator Handle
Dimensions6.7 in H
Inlet to Outlet Length4.37 in
Manufacturer NameThermOmegaTech
MediaAir, Ketones, Steam, Synthetic Hydraulic Oils, Water
Pressure Class150 lb
Series300 Series
Softgoods MaterialEPDM
Temperature Rating250 deg F
Type3-Way
ApplicationBattery Cooling, Cooling Water Control for Radiator or Heat Exchanger, Direct Cooling With Raw Water, Direct Injection Water Heating, Electronics System Cooling, Engine and Compressor Cooling System, Hydraulic Fluid Cooling Systems, Hydraulic Power Units (HPUs), Hydraulic Thermal Bypass, Loop-Type Circulation Systems, Lube Oil Cooling Control, Lube Oil Thermal Bypass, Temperature Control for Baths, Wash Basins and Sinks, Temperature Mixing or Diverting, Thermal Management, Water Saving, Industrial, Aerospace and Defense Applications
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsQMS AS9100 D | PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov

Item Features

  • Self-operating - no external power source required
  • Few moving parts - reduce system wear
  • Minimal maintenance needed
  • Exclusive self-actuating Thermoloid® wax blend thermal actuator
  • Heavy duty rugged construction
  • Compact and low mass for fast response
  • 90 deg F set point temperature
  • EPDM seal
