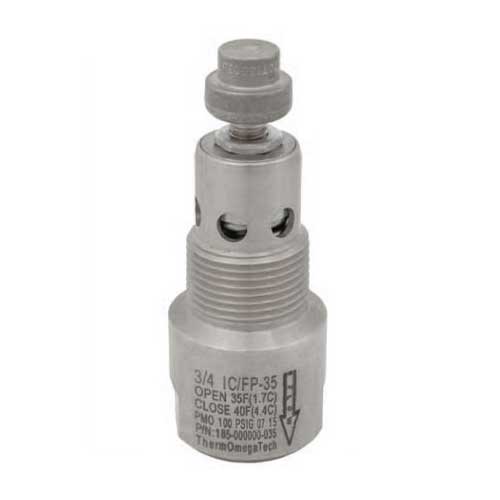

ThermOmegaTech® 185-220000-035 IC/FP Interchangeable Cartridge Thermostatic Freeze Protection Valve, 3/4 in Nominal, NPT End Style, 100 psig Pressure, 303 Stainless Steel Body, Domestic
CBPN:257446
MPN:185-220000-035
DESCRIPTION
ThermOmegaTech® Thermostatic Freeze Protection Valve, Interchangeable Cartridge, Series: IC/FP, 3/4 in Nominal, NPT End Style, 100 psig Pressure, 200 deg F, Media: Water, Thermal Insulator Handle Actuator, 303 Stainless Steel Body, 300 Series Stainless Steel Trim, PTFE Softgoods, 1.4 in OD x 3.53 in L Dimensions, Domestic, Model 3/4 IC/FP-35-SS
The IC/FP interchangeable cartridge style Thermostatic Freeze Protection Valve is designed to protect piping in processing plants, safety showers, fire lines and spray nozzles or to be used as a backup protection on traced systems. The IC/FP is preferred for heat traced lines where freeze protection flow is not required unless heat tracing fails. Installed into the lowest point within the heated system, the thermal actuator within the valve is tee'd into the NPT threaded opening with adequate internal clearance to monitor the water temperature. When the water temperature drops below the valve's set point, typically 35 deg F (1.7 deg C), the thermal actuator modulates the valve open. Once the makeup water temperature returns to the safe range (5 deg above the open set point, typically 40 deg F [4.4 deg C] ), the valve then modulates closed, minimizing water waste. Due to the sensing element, the thermal actuator, always being wetted this valve is unaffected by ambient air temperature and opens only when the water is in danger of freezing.
ThermOmegaTech® 185-220000-035 IC/FP Interchangeable Cartridge Thermostatic Freeze Protection Valve, 3/4 in Nominal, NPT End Style, 100 psig Pressure, 303 Stainless Steel Body, Domestic
CBPN:257446
MPN:185-220000-035
DESCRIPTION
ThermOmegaTech® Thermostatic Freeze Protection Valve, Interchangeable Cartridge, Series: IC/FP, 3/4 in Nominal, NPT End Style, 100 psig Pressure, 200 deg F, Media: Water, Thermal Insulator Handle Actuator, 303 Stainless Steel Body, 300 Series Stainless Steel Trim, PTFE Softgoods, 1.4 in OD x 3.53 in L Dimensions, Domestic, Model 3/4 IC/FP-35-SS
The IC/FP interchangeable cartridge style Thermostatic Freeze Protection Valve is designed to protect piping in processing plants, safety showers, fire lines and spray nozzles or to be used as a backup protection on traced systems. The IC/FP is preferred for heat traced lines where freeze protection flow is not required unless heat tracing fails. Installed into the lowest point within the heated system, the thermal actuator within the valve is tee'd into the NPT threaded opening with adequate internal clearance to monitor the water temperature. When the water temperature drops below the valve's set point, typically 35 deg F (1.7 deg C), the thermal actuator modulates the valve open. Once the makeup water temperature returns to the safe range (5 deg above the open set point, typically 40 deg F [4.4 deg C] ), the valve then modulates closed, minimizing water waste. Due to the sensing element, the thermal actuator, always being wetted this valve is unaffected by ambient air temperature and opens only when the water is in danger of freezing.
Specifications
Item Features
- Self-operating, no external power source required
- Discharges minimum amount of water required
- Primary protection or fail-safe backup
- Exclusive self-actuating Thermoloid® blend paraffin wax actuator
- Stainless steel body, fittings, spring and plug
- Designed to be tee's into larger diameter pipe lines
- 300 stainless steel operating spring
- PTFE seal
- 35 deg F open/40 deg F close temperature
