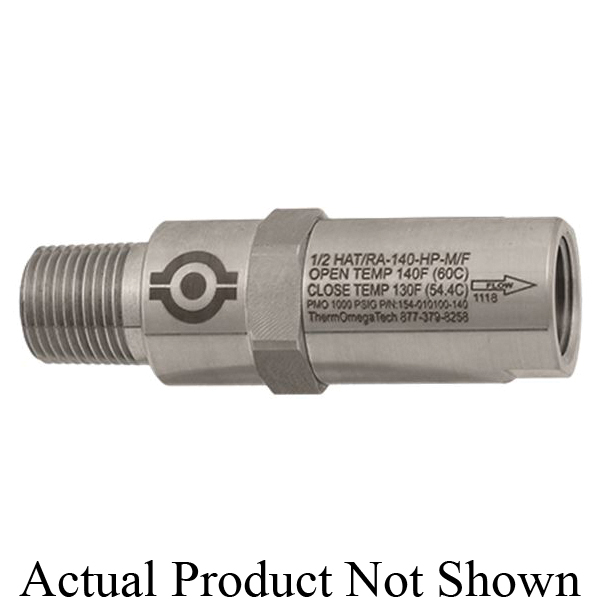

ThermOmegaTech® 154-010100-125 HAT/RA-HP High Pressure In-Line Reverse Acting Temperature Control Valve, 1/2 in Nominal, NPT End Style, 1000 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN:257770
MPN:154-010100-125
DESCRIPTION
ThermOmegaTech® Temperature Control Valve, High Pressure In-Line Reverse Acting, Series: HAT/RA-HP, 1/2 in Nominal, NPT End Style, 1000 psig Pressure, 250 deg F, Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 3.8 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM/PTFE Softgoods, 1.1 in Dia Dimensions, Domestic, Model 1/2 HAT/RA-125-HP-M/F
The HAT/RA-HP thermal relief valve is designed to protect higher rated pressure systems (up to 1000 psig [69 bar]) from over-temperature damage. It is commonly used as a thermal relief valve on fire pumps and high pressure water pumps to keep them cool during idling. It may also be used as a regulating valve to maintain the flow of glycol, water or other media in critical cooling applications and to economically remove heat from equipment or a process. If the fluid temperature increases to within the operating range of the HAT/RA-HP, the thermal actuator will modulate the valve open to discharge the over-temperature fluid. As the outlet temperature falls, the valve then modulates toward the closed position, reducing flow. This modulating action maintains a relatively constant fluid temperature and reduces wasted water and energy.
ThermOmegaTech® 154-010100-125 HAT/RA-HP High Pressure In-Line Reverse Acting Temperature Control Valve, 1/2 in Nominal, NPT End Style, 1000 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN:257770
MPN:154-010100-125
DESCRIPTION
ThermOmegaTech® Temperature Control Valve, High Pressure In-Line Reverse Acting, Series: HAT/RA-HP, 1/2 in Nominal, NPT End Style, 1000 psig Pressure, 250 deg F, Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 3.8 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM/PTFE Softgoods, 1.1 in Dia Dimensions, Domestic, Model 1/2 HAT/RA-125-HP-M/F
The HAT/RA-HP thermal relief valve is designed to protect higher rated pressure systems (up to 1000 psig [69 bar]) from over-temperature damage. It is commonly used as a thermal relief valve on fire pumps and high pressure water pumps to keep them cool during idling. It may also be used as a regulating valve to maintain the flow of glycol, water or other media in critical cooling applications and to economically remove heat from equipment or a process. If the fluid temperature increases to within the operating range of the HAT/RA-HP, the thermal actuator will modulate the valve open to discharge the over-temperature fluid. As the outlet temperature falls, the valve then modulates toward the closed position, reducing flow. This modulating action maintains a relatively constant fluid temperature and reduces wasted water and energy.
Specifications
Item Features
- Self-operating, no power or signal required
- Protects pump and pump seals from over-temperature damage
- Rated for higher pressure systems - up to 1000 psig
- Exclusive Thermoloid® thermal actuator
- Stainless steel body, fittings, spring and plug
- Compact, low mass - fast response
- 300 stainless steel operating spring
- EPDM body seal/seat ring seal, PTFE port seal
- A #20 mesh strainer is recommended
- 125 deg F open/115 deg F close temperature
