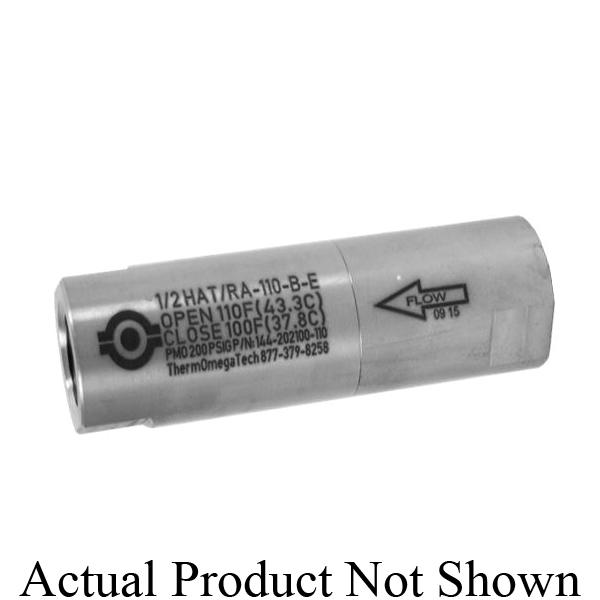

ThermOmegaTech® 144-212102-085 HAT/RA-LP In-Line Reverse Acting Leak Port Temperature Control Valve, 1/2 in Nominal, NPT End Style, 60 psig Pressure, 1/4 gpm Flow, 300 Series Stainless Steel Body, Domestic
CBPN:257863
MPN:144-212102-085
DESCRIPTION
ThermOmegaTech® Temperature Control Valve, In-Line Reverse Acting Leak Port, Series: HAT/RA-LP, 1/2 in Nominal, NPT End Style, 60 psig Pressure, 150 deg F, 1/4 gpm Flow, B Port, Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 4-1/2 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM/PTFE Softgoods, 1.3 in Dia Dimensions, Domestic, Model 1/2 HAT/RA-85-B-SS-LP-E
The HAT/RA is a self-actuating thermal relief valve that automatically opens on rising temperatures to keep systems cool, avoid scalding and relieve overheated temperatures from equipment or processes. This thermostatic valve is designed to monitor, control and regulate flow, utilizing a thermal actuator to continuously sense in-line fluid temperature. As the fluid temperature increases to within the operating range of the HAT/RA, the thermal actuator modulates the valve open. If the fluid temperature is above the valve's set point, the valve will continue to modulate open allowing additional fluid discharge. As the outlet temperature falls, the valve then modulates toward the closed position, reducing flow. This modulating action maintains a relatively constant fluid temperature even as operating conditions vary. The HAT/RA valve may be used to regulate the flow of cooling water, glycol or other cooling media in applications requiring economical removal of heat from equipment or a process. Since the HAT/RA valves open on rising temperatures, they can be used in many thermal relief valve applications.
ThermOmegaTech® 144-212102-085 HAT/RA-LP In-Line Reverse Acting Leak Port Temperature Control Valve, 1/2 in Nominal, NPT End Style, 60 psig Pressure, 1/4 gpm Flow, 300 Series Stainless Steel Body, Domestic
CBPN:257863
MPN:144-212102-085
DESCRIPTION
ThermOmegaTech® Temperature Control Valve, In-Line Reverse Acting Leak Port, Series: HAT/RA-LP, 1/2 in Nominal, NPT End Style, 60 psig Pressure, 150 deg F, 1/4 gpm Flow, B Port, Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 4-1/2 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM/PTFE Softgoods, 1.3 in Dia Dimensions, Domestic, Model 1/2 HAT/RA-85-B-SS-LP-E
The HAT/RA is a self-actuating thermal relief valve that automatically opens on rising temperatures to keep systems cool, avoid scalding and relieve overheated temperatures from equipment or processes. This thermostatic valve is designed to monitor, control and regulate flow, utilizing a thermal actuator to continuously sense in-line fluid temperature. As the fluid temperature increases to within the operating range of the HAT/RA, the thermal actuator modulates the valve open. If the fluid temperature is above the valve's set point, the valve will continue to modulate open allowing additional fluid discharge. As the outlet temperature falls, the valve then modulates toward the closed position, reducing flow. This modulating action maintains a relatively constant fluid temperature even as operating conditions vary. The HAT/RA valve may be used to regulate the flow of cooling water, glycol or other cooling media in applications requiring economical removal of heat from equipment or a process. Since the HAT/RA valves open on rising temperatures, they can be used in many thermal relief valve applications.
Specifications
Item Features
- Self-operating, no power or signal required
- Maintains constant discharge temperatures
- Controls fluid return temperatures to keep systems cool, avoid scalding and relieve overheated temperatures from equipment or processes
- Exclusive Thermoloid® thermal actuator
- Stainless steel body, fittings, spring and plug
- Compact, low mass - fast response
- 300 stainless steel operating spring
- EPDM body seal, PTFE seat seal ring
- Leak port (LP) option senses changing upstream temperature
- A #20 mesh strainer is recommended
- 85 deg F open/75 deg F close temperature
