ThermOmegaTech® 134-302100-090

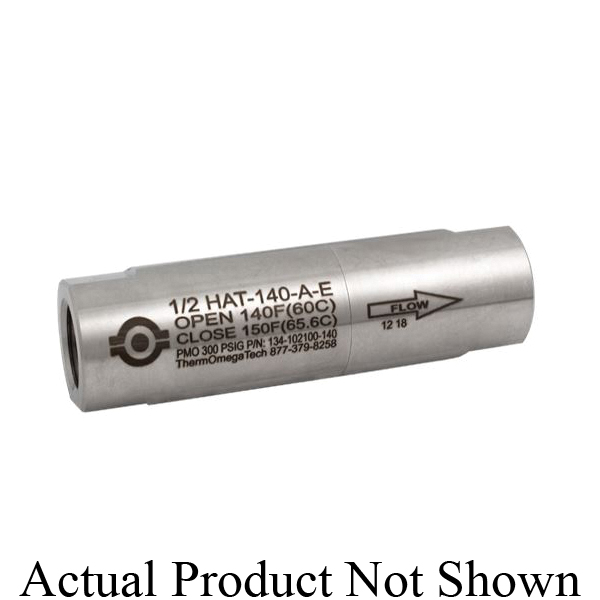

ThermOmegaTech® 134-302100-090 HAT In-Line Temperature Control Valve, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 300 Series Stainless Steel Body, Domestic

CBPN:206080

MPN:134-302100-090

Price:
$324.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Temperature Control Valve, In-Line, Series: HAT, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 150 deg F, C Port, Media: Air, Glycol, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 4-1/2 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM/PTFE Softgoods, 1.3 in Dia Dimensions, Domestic, Model 1/2 HAT-090-C-E

The self-operating HAT is a temperature activated valve that is designed to open on falling temperatures to keep systems warm during the freeze season. It can be used to control temperatures in glycol heat tracing systems, tank heating coils, sampling systems, condensate systems, as a sub-cooling steam trap and for countless other applications. This thermostatic valve is mechanically operated by a thermal wax actuator that continuously senses the fluid temperature within a system and will modulate the valve open to initiate flow if the temperature falls below the valve's set point. Once the fluid temperature increases back to the set point, the valve will modulate closed. It is available in 1/2 in and 3/4 in NPT and a wide range of open set point temperatures ranging from 40 deg F (4.44 deg C) to 200 deg F (93.3 deg C).

ThermOmegaTech® 134-302100-090 HAT In-Line Temperature Control Valve, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 300 Series Stainless Steel Body, Domestic

CBPN:206080

MPN:134-302100-090

Price:
$324.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® Temperature Control Valve, In-Line, Series: HAT, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 150 deg F, C Port, Media: Air, Glycol, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 4-1/2 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM/PTFE Softgoods, 1.3 in Dia Dimensions, Domestic, Model 1/2 HAT-090-C-E

The self-operating HAT is a temperature activated valve that is designed to open on falling temperatures to keep systems warm during the freeze season. It can be used to control temperatures in glycol heat tracing systems, tank heating coils, sampling systems, condensate systems, as a sub-cooling steam trap and for countless other applications. This thermostatic valve is mechanically operated by a thermal wax actuator that continuously senses the fluid temperature within a system and will modulate the valve open to initiate flow if the temperature falls below the valve's set point. Once the fluid temperature increases back to the set point, the valve will modulate closed. It is available in 1/2 in and 3/4 in NPT and a wide range of open set point temperatures ranging from 40 deg F (4.44 deg C) to 200 deg F (93.3 deg C).

Specifications

BrandThermOmegaTech®
Weight1 lbs
Nominal Size1/2 in
End StyleNPT
Pressure Rating300 psig
Body Material300 Series Stainless Steel
Actuator TypeThermal Insulator Handle
Dimensions1.3 in Dia
Inlet to Outlet Length4-1/2 in
Manufacturer NameThermOmegaTech
MediaAir, Glycol, Ketones, Steam, Synthetic Hydraulic Oils, Water
Port TypeC
SeriesHAT
Softgoods MaterialEPDM/PTFE
Temperature Rating150 deg F
Trim Material300 Series Stainless Steel
TypeIn-Line
ApplicationSteam Traps, Glycol Heat Tracing, Freeze Protection for Condensate Systems, Float Traps and Tank Heating Coils Applications
Warranty18 months
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsPROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov

Item Features

  • Self-operating, no power or signal required
  • Maintains constant discharge temperatures
  • Controls fluid return temperatures to keep systems warm
  • Exclusive Thermoloid® thermal actuator
  • Stainless steel body, fittings, spring and plug
  • Compact, low mass - fast response
  • 300 stainless steel operating spring
  • EPDM body seal, PTFE seat ring seal
  • A #20 mesh strainer is recommended
  • 90 deg F open/100 deg F close temperature
