ThermOmegaTech HAT/FP Freeze Protection Valve

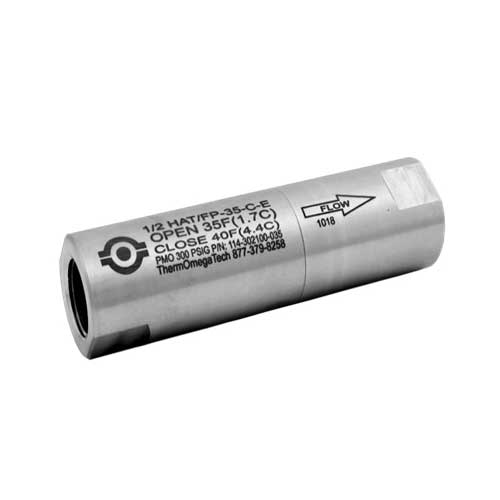

ThermOmegaTech® 114-702100-035 HAT/FP Fluid Sensing Thermostatic Freeze Protection Valve, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 303 Stainless Steel Body, Domestic

CBPN:254088

MPN:114-702100-035

Price:
$208.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Thermostatic Freeze Protection Valve, Fluid Sensing, Series: HAT/FP, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 300 deg F, C Port, Media: Water, Thermostatic Actuator, 4-1/2 in Inlet to Outlet Length, 303 Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM Softgoods, 1.3 in OD Dimensions, Domestic, Model 1/2 HAT/FP-35-C-RF-E (Fluid Sensing)

The HAT/FP is a Thermostatic Freeze Protection Valve designed to protect water resupply lines from freezing. This self-operating valve continuously monitors ambient or water temperatures, depending on installation orientation and will automatically bleed off the cold water in the line before freezing can occur. HAT/FP freeze protection valves initiate flow when the thermal actuator senses the valve's set point, typically 35 deg F (1.6 deg C) and will remain open as long as the discharge water is below 5 deg above that, typically 40 deg F (4.4 deg C). This prevents frozen or burst pipes which can lead to downtime and hefty repair expenses while minimizing water waste. These automatic freeze protection valves are ideal for the protection of piping, safety showers, eyewash or facewash stations, solar collectors and piping, condensate systems, fire lines, spray nozzles or as backup/fail-safe protection on traced systems.

ThermOmegaTech® 114-702100-035 HAT/FP Fluid Sensing Thermostatic Freeze Protection Valve, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 303 Stainless Steel Body, Domestic

CBPN:254088

MPN:114-702100-035

Price:
$208.00 / EA

Prop 65:

DESCRIPTION

ThermOmegaTech® Thermostatic Freeze Protection Valve, Fluid Sensing, Series: HAT/FP, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 300 deg F, C Port, Media: Water, Thermostatic Actuator, 4-1/2 in Inlet to Outlet Length, 303 Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM Softgoods, 1.3 in OD Dimensions, Domestic, Model 1/2 HAT/FP-35-C-RF-E (Fluid Sensing)

The HAT/FP is a Thermostatic Freeze Protection Valve designed to protect water resupply lines from freezing. This self-operating valve continuously monitors ambient or water temperatures, depending on installation orientation and will automatically bleed off the cold water in the line before freezing can occur. HAT/FP freeze protection valves initiate flow when the thermal actuator senses the valve's set point, typically 35 deg F (1.6 deg C) and will remain open as long as the discharge water is below 5 deg above that, typically 40 deg F (4.4 deg C). This prevents frozen or burst pipes which can lead to downtime and hefty repair expenses while minimizing water waste. These automatic freeze protection valves are ideal for the protection of piping, safety showers, eyewash or facewash stations, solar collectors and piping, condensate systems, fire lines, spray nozzles or as backup/fail-safe protection on traced systems.

Specifications

Brand: ThermOmegaTech®
Weight: 1 lbs
Nominal Size: 1/2 in
End Style: NPT
Pressure Rating: 300 psig
Body Material: 303 Stainless Steel
Actuator Type: Thermostatic
Dimensions: 1.3 in OD
Inlet to Outlet Length: 4-1/2 in
Manufacturer Name: ThermOmegaTech
Media: Water
Port Type: C
Series: HAT/FP
Softgoods Material: EPDM
Temperature Rating: 300 deg F
Trim Material: 300 Series Stainless Steel
Type: Fluid Sensing
Application: For protection of piping, safety showers, eyewash or facewash stations, solar collectors and piping, condensate systems, fire lines, spray nozzles or as backup/fail-safe protection on traced systems
Warranty: 18 months
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov

Item Features

  • Self-operating, no external power source required
  • Discharges minimum amount of water required
  • Primary protection or fail-safe backup
  • Exclusive self-actuating Thermoloid® blend paraffin wax actuator
  • Stainless steel body, fittings, spring and plug
  • Compact and low mass
  • 300 stainless steel seat/spring
  • EPDM seal
  • 35 deg F open/40 deg F close temperature
