ThermOmegaTech HAT/FP Valve

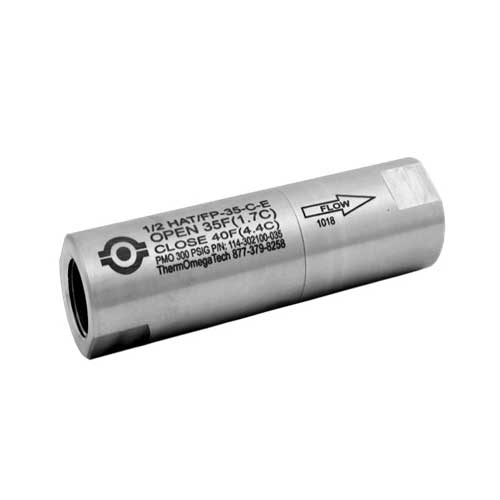

ThermOmegaTech® 114-202100-035 HAT/FP Ambient Sensing Thermostatic Freeze Protection Valve, 1/2 in Nominal, NPT End Style, 300 psig Pressure, Stainless Steel Body, Domestic

CBPN:254665

MPN:114-202100-035

Price:
$294.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Thermostatic Freeze Protection Valve, Ambient Sensing, Series: HAT/FP, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 300 deg F, Media: Water, Thermostatic Actuator, Stainless Steel Body, 1.3 in OD x 4.5 in L Dimensions, Domestic, Model 1/2 HAT/FP-35-B-E (Ambient Sensing)

The HAT/FP is a Thermostatic Freeze Protection Valve designed to protect water resupply lines from freezing. This self-operating valve continuously monitors ambient or water temperatures, depending on installation orientation and will automatically bleed off the cold water in the line before freezing can occur. HAT/FP freeze protection valves initiate flow when the thermal actuator senses the valve's set point, typically 35 deg F (1.6 deg C) and will remain open as long as the discharge water is below 5 deg above that, typically 40 deg F (4.4 deg C). This prevents frozen or burst pipes which can lead to downtime and hefty repair expenses while minimizing water waste. These automatic freeze protection valves are ideal for the protection of piping, safety showers, eyewash or facewash stations, solar collectors and piping, condensate systems, fire lines, spray nozzles or as backup/fail-safe protection on traced systems.

ThermOmegaTech® 114-202100-035 HAT/FP Ambient Sensing Thermostatic Freeze Protection Valve, 1/2 in Nominal, NPT End Style, 300 psig Pressure, Stainless Steel Body, Domestic

CBPN:254665

MPN:114-202100-035

Price:
$294.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® Thermostatic Freeze Protection Valve, Ambient Sensing, Series: HAT/FP, 1/2 in Nominal, NPT End Style, 300 psig Pressure, 300 deg F, Media: Water, Thermostatic Actuator, Stainless Steel Body, 1.3 in OD x 4.5 in L Dimensions, Domestic, Model 1/2 HAT/FP-35-B-E (Ambient Sensing)

The HAT/FP is a Thermostatic Freeze Protection Valve designed to protect water resupply lines from freezing. This self-operating valve continuously monitors ambient or water temperatures, depending on installation orientation and will automatically bleed off the cold water in the line before freezing can occur. HAT/FP freeze protection valves initiate flow when the thermal actuator senses the valve's set point, typically 35 deg F (1.6 deg C) and will remain open as long as the discharge water is below 5 deg above that, typically 40 deg F (4.4 deg C). This prevents frozen or burst pipes which can lead to downtime and hefty repair expenses while minimizing water waste. These automatic freeze protection valves are ideal for the protection of piping, safety showers, eyewash or facewash stations, solar collectors and piping, condensate systems, fire lines, spray nozzles or as backup/fail-safe protection on traced systems.

Specifications

BrandThermOmegaTech®
Weight1 lbs
Nominal Size1/2 in
End StyleNPT
Pressure Rating300 psig
Body MaterialStainless Steel
Actuator TypeThermostatic
Dimensions1.3 in OD x 4.5 in L
Manufacturer NameThermOmegaTech
MediaWater
SeriesHAT/FP
Temperature Rating300 deg F
TypeAmbient Sensing
ApplicationFor protection of piping, safety showers, eyewash or facewash stations, solar collectors and piping, condensate systems, fire lines, spray nozzles or as backup/fail-safe protection on traced systems
Warranty18 months
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsPROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov

Item Features

  • Self-operating, no external power source required
  • Discharges minimum amount of water required
  • Primary protection or fail-safe backup
  • Exclusive self-actuating Thermoloid® blend paraffin wax actuator
  • Stainless steel body, fittings, spring and plug
  • Compact and low mass
  • 35 deg F open/40 deg F close temperature
