Taco® 007-SF5

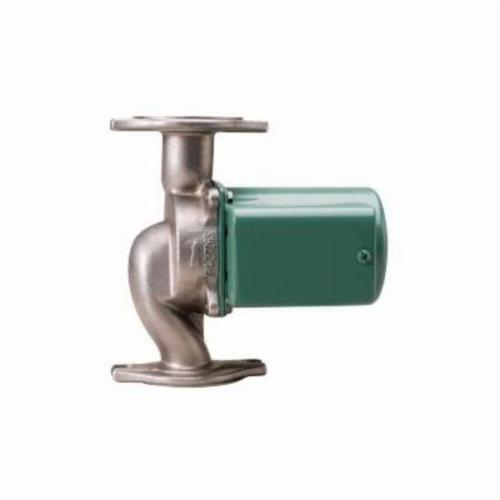

Taco® 007-SF5 007S Stainless Steel Cartridge Circulator Pump, 23 gpm Flow Rate, 1, 1-1/2, 1-1/4, 3/4 in Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 115 VAC, 1 ph Phase, Domestic

CBPN:6847

MPN:007-SF5

Price:
$648.21 / EA

DESCRIPTION

Taco®, 007-SF5, Cartridge Circulator Pump, Stainless Steel, Series: 007S, 23 gpm Flow Rate, 1, 1-1/2, 1-1/4, 3/4 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 10 ft Maximum Head, 1/25 hp Power, 115 VAC, 0.76 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Open Drip-Proof Enclosure, Carbon Bearing, 6-3/8 in L x 4-3/4 in W x 6-3/8 in H Dimensions, Domestic

The Taco® 007 cartridge circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.

Taco® 007-SF5 007S Stainless Steel Cartridge Circulator Pump, 23 gpm Flow Rate, 1, 1-1/2, 1-1/4, 3/4 in Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 115 VAC, 1 ph Phase, Domestic

CBPN:6847

MPN:007-SF5

Price:
$648.21 / EA

Taco Comfort Solutions Logo

DESCRIPTION

Taco®, 007-SF5, Cartridge Circulator Pump, Stainless Steel, Series: 007S, 23 gpm Flow Rate, 1, 1-1/2, 1-1/4, 3/4 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 10 ft Maximum Head, 1/25 hp Power, 115 VAC, 0.76 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Open Drip-Proof Enclosure, Carbon Bearing, 6-3/8 in L x 4-3/4 in W x 6-3/8 in H Dimensions, Domestic

The Taco® 007 cartridge circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.

Specifications

BrandTaco®
Weight6.3 lbs
Flow Rate23 gpm
Inlet Size1, 1-1/2, 1-1/4, 3/4 in
Outlet Size3/4, 1, 1-1/4, 1-1/2 in
Voltage Rating115 VAC
Phase1 ph
Amperage Rating0.76 A
Bearing TypeCarbon
Dimensions6-3/8 in L x 4-3/4 in W x 6-3/8 in H
Enclosure TypeOpen Drip-Proof
Frequency Rating60 Hz
Impeller TypeNon-Metallic
Manufacturer NameTaco
Maximum Head10 ft
Maximum Pressure125 psi
Motor Speed3250 rpm
Mounting TypeFlange
Power Rating1/25 hp
Series007S
Temperature Rating40 to 230 deg F
TypeStainless Steel
IncludesFlange Gaskets
ApplicationFor indoor use only
Warranty3 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalscULus Listed | NSF Approved | UL-CUS

Item Features

  • The Taco® 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump
  • It is designed for quiet operation in hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, chilled fresh water, and domestic water recirculation systems
  • Stainless steel construction with universal flanged connections
  • The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit
  • Ideal for a wide range of applications
  • Universal flange to flange dimensions
  • Permanent split capacitor impedance protected type motor
  • Standard flanged orientation
  • Standard High Capacity Output-Compact Design
  • Direct Drive-Low Power Consumption
  • Unique Replaceable Cartridge Design-Field Serviceable
  • Self Lubricating
  • No Mechanical Seal
  • Unmatched Reliability-Maintenance Free
