![T & S EC-3102](/userfiles/ad/medium/T_S_EC-3102.jpg)

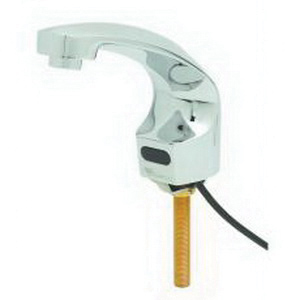

T & S CheckPoint™ EC-3102 Sensor Faucet, 2.2 gpm Flow Rate, 4-1/16 in H Spout, 1 Faucet Holes, Polished Chrome, Function: Touchless
CBPN:242714
UPC:671262667722
MPN:EC-3102
Price:
$641.20 / EA
DESCRIPTION
T & S CheckPoint™ Sensor Faucet, 2.2 gpm, Integral Spout, 4-7/8 in Spout Reach, 4-1/16 in Spout Height, 18 in Hose, 1 Faucet Holes, 3/8 x 1/2 in, Compression x NPSM, Spray Pattern: Aerated, Function: Touchless, 2-1/4 in Maximum Deck Thickness, Deck Mount, Temperature Mixing Valve/Cartridge, 5-1/16 in H, Brass, Polished Chrome, Import
T & S CheckPoint™ EC-3102 Sensor Faucet, 2.2 gpm Flow Rate, 4-1/16 in H Spout, 1 Faucet Holes, Polished Chrome, Function: Touchless
CBPN:242714
MPN:EC-3102
UPC:671262667722
Price:
$641.20 / EA
DESCRIPTION
T & S CheckPoint™ Sensor Faucet, 2.2 gpm, Integral Spout, 4-7/8 in Spout Reach, 4-1/16 in Spout Height, 18 in Hose, 1 Faucet Holes, 3/8 x 1/2 in, Compression x NPSM, Spray Pattern: Aerated, Function: Touchless, 2-1/4 in Maximum Deck Thickness, Deck Mount, Temperature Mixing Valve/Cartridge, 5-1/16 in H, Brass, Polished Chrome, Import
Specifications
Brand: T & S
Weight: 6.7 lbs
Flow Rate: 2.2 gpm
Spout Height: 4-1/16 in
Finish/Color: Polished Chrome
Connection Size: 3/8 x 1/2 in
Connection Type: Compression x NPSM
Dimensions: 5-1/16 in H
Function: Touchless
Hose Size: 18 in
Manufacturer Name: T & S Brass
Material: Brass
Maximum Deck Thickness: 2-1/4 in
Mounting Type: Deck
Number of Faucet Holes: 1
Spout Reach: 4-7/8 in
Spout Type: Integral
Spray Pattern: Aerated
Valve/Cartridge Type: Temperature Mixing
Warranty: 3 Years Limited
Domestic/Import: Import
Country of Origin: TW
Standards and Approvals: ANSI/ICC A117.1 (ADA) | ASME A112.18.1/CSA B125.1 | Commonwealth of Massachusetts | California CEC-400 (Power Supplies) | cULus Listed | CSAUS Certified | NSF 61-Section 9 | NSF/ANSI 372 (Low Lead Content) | Taiwan/TAA | UL 1951
Item Features
- 2.2 gpm vandal resistant aerator, series 6 (B-0199-06)
- Water resistant control module with internal flow control switches for adjusting auto time out and shut-off delay setting
- Mechanical temperature mixing valve with integral check valve
- 18 in flexible stainless steel supply hose with 3/8 in compression connection
- Low battery LED indicator light
- 20 to 125 psi
- 40 to 140 deg F rated operating temperature
- Water consumption: 0.37 gal at 10 sec , 0.55 gal at 15 sec
- Cast spout nozzles
- AC/DC control module
