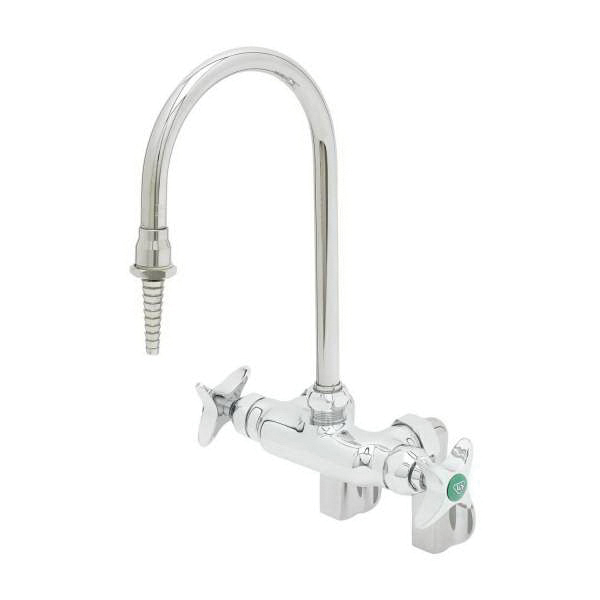

T & S BL-5740-01 Mixing Faucet With Adjustable Inlets, 5 gpm Flow Rate, 3-3/8 in Center, Polished Chrome
CBPN:205854
UPC:671262017657
MPN:BL-5740-01
Price:
$433.20 / EA
Prop 65:
DESCRIPTION
T & S Mixing Faucet, 5 gpm Flow Rate, 3-3/8 in Center Distance, Rigid/Swivel Gooseneck Spout, 5-7/8 in Spout Reach, 4-1/8 in Spout Height, Spring Check Valve/Quarter Turn Eterna Compression Cartridge, 4-Arm Handle, 1/2 in Connection, FNPT Connection, Spray Pattern: Serrated Tip, Wall Mounting, 9-3/16 in L, Brass, Polished Chrome
T & S BL-5740-01 Mixing Faucet With Adjustable Inlets, 5 gpm Flow Rate, 3-3/8 in Center, Polished Chrome
CBPN:205854
MPN:BL-5740-01
UPC:671262017657
Price:
$433.20 / EA
Prop 65:
DESCRIPTION
T & S Mixing Faucet, 5 gpm Flow Rate, 3-3/8 in Center Distance, Rigid/Swivel Gooseneck Spout, 5-7/8 in Spout Reach, 4-1/8 in Spout Height, Spring Check Valve/Quarter Turn Eterna Compression Cartridge, 4-Arm Handle, 1/2 in Connection, FNPT Connection, Spray Pattern: Serrated Tip, Wall Mounting, 9-3/16 in L, Brass, Polished Chrome
Specifications
Brand: T & S
Weight: 5.49 lbs
Flow Rate: 5 gpm
Center Distance: 3-3/8 in
Finish/Color: Polished Chrome
Connection Size: 1/2 in
Connection Type: FNPT
Dimensions: 9-3/16 in L
Handle Type: 4-Arm
Manufacturer Name: T & S Brass
Material: Brass
Mounting Type: Wall
Spout Height: 4-1/8 in
Spout Reach: 5-7/8 in
Spout Type: Rigid/Swivel Gooseneck
Spray Pattern: Serrated Tip
Valve/Cartridge Type: Spring Check Valve/Quarter Turn Eterna Compression Cartridge
Includes: Lock Washer
Warranty: 1 Year Limited
Standards and Approvals: ANSI A117.1/61/372 (Lead Content) | ADA A117.1 | ASME A112.18.1 | BAA/ARRA | City of Los Angeles | Commonwealth of Massachusetts | CSA B125.1 | cCSAus Listed | ICC A117.1 | Low Lead Compliant | NSF 372 | NSF Exempt | US Green Building Council Member | EPA WaterSense® Certified | PROP65: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov.
Item Features
- Adjustable inlet wall mount mixing faucet with polished chrome plated brass body
- Lock washer included for rigid applications
- Quarter-turn Eterna compression cartridges with spring checks to prevent the cross flow of water
- 4-Arm handles with color coded indexes
- 1/2 in FNPT adjustable arm inlets with 2 in flange
- Adjustable centers from 2-1/4 in to 8-1/4 in above or below centerline
- Polished chrome plated brass body and tubular spout and chrome plated metal handle
- 5 gpm at 60 psi
