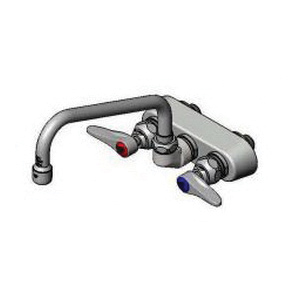

T & S B-1106 Workboard Mixing Manual Faucet, Polished Chrome, 3-1/2 in Center, 2.2 gpm
CBPN:210848
UPC:671262009324
MPN:B-1106
Price:
$221.60 / EA
DESCRIPTION
T & S Workboard Mixing Manual Faucet, 2.2 gpm Flow Rate, 3-1/2 in Center Distance, Tubular Spout, 8 in Spout Reach, 2-7/8 in Spout Height, Lever Handle, 1/2 in Connection, MNPT Connection, Spray Pattern: Aerated, 1/4 in Maximum Deck Thickness, Wall Mounting, Quarter-Turn Eterna Compression, 8-5/8 in W Dimensions, Brass, Polished Chrome
T & S B-1106 Workboard Mixing Manual Faucet, Polished Chrome, 3-1/2 in Center, 2.2 gpm
CBPN:210848
MPN:B-1106
UPC:671262009324
Price:
$221.60 / EA
DESCRIPTION
T & S Workboard Mixing Manual Faucet, 2.2 gpm Flow Rate, 3-1/2 in Center Distance, Tubular Spout, 8 in Spout Reach, 2-7/8 in Spout Height, Lever Handle, 1/2 in Connection, MNPT Connection, Spray Pattern: Aerated, 1/4 in Maximum Deck Thickness, Wall Mounting, Quarter-Turn Eterna Compression, 8-5/8 in W Dimensions, Brass, Polished Chrome
Specifications
Brand: T & S
Weight: 2.91 lbs
Finish/Color: Polished Chrome
Center Distance: 3-1/2 in
Flow Rate: 2.2 gpm
Connection Size: 1/2 in
Connection Type: MNPT
Dimensions: 8-5/8 in W
Handle Type: Lever
Manufacturer Name: T & S Brass
Material: Brass
Maximum Deck Thickness: 1/4 in
Mounting Type: Wall
Spout Height: 2-7/8 in
Spout Reach: 8 in
Spout Type: Tubular
Spray Pattern: Aerated
Valve/Cartridge Type: Quarter-Turn Eterna Compression
Warranty: 1 Year Limited
Standards and Approvals: ANSI/ICC A117.1 (ADA) | ASME A112.18.1/CSA B125.1 | City of Los Angeles | Commonwealth of Massachusetts BAA/ARRA Certification | NSF 61-Section 9 and NSF/ANSI 372
Item Features
- 8 in swing nozzles
- 2.2 gpm aerator, series 1 (B-0199-01)
- Quarter turn eterna compression cartridge with spring check to prevent cross flow of water
- Lever handle with color coded index
- Tailpiece and nut to provide 1/4 in MNPT
- 40 to 140 deg F rated operating
- Low lead content (0.25% max)
- Rough-in requirement - (2) 1 in Dia (25mm) mounting hole
- Polished chrome metal handle and escutcheon
