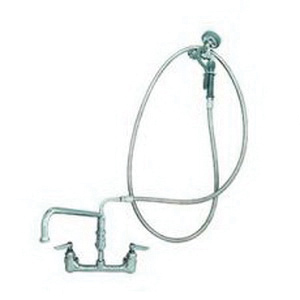

T & S B-0175 Spray Assembly, 1/2 in FNPT Connection, Stainless Steel, 104 in L Spray Hose, Domestic
CBPN:54306
UPC:671262001526
MPN:B-0175
Price:
$837.20 / EA
DESCRIPTION
T & S Spray Assembly, 1.15 gpm, 1/2 in FNPT, Stainless Steel Spray Hose, 104 in Spray Hose, Domestic
T & S B-0175 Spray Assembly, 1/2 in FNPT Connection, Stainless Steel, 104 in L Spray Hose, Domestic
CBPN:54306
MPN:B-0175
UPC:671262001526
Price:
$837.20 / EA
DESCRIPTION
T & S Spray Assembly, 1.15 gpm, 1/2 in FNPT, Stainless Steel Spray Hose, 104 in Spray Hose, Domestic
Specifications
Brand: T & S
Weight: 13 lbs
Connection Size: 1/2 in FNPT
Spray Hose Material: Stainless Steel
Spray Hose Length: 104 in
Flow Rate: 1.15 gpm
Manufacturer Name: T & S Brass
Warranty: 1 Year Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME A112.18.1/CSA B125.1 | ASTM F2324 | BAA/ARRA Certification | California Energy Commission CEC-400 (Plumbing) | City of Los Angeles | Commonwealth of Massachusetts | EPAct2005 (Public Law 109-58) Compliant | ANSI/NSF 61 | ANSI/NSF 372 (Lead Content)
Item Features
- 20 to 125 psi
- 40 to 140 deg F
- 8 in wall mount mixing faucet with polished chrome plated brass body
- 12 in swing nozzles with stream regulator outlet (series 1)
- 104 in flexible stainless steel hose with heat resistant gray handle and hold down ring
- 1.15 gpm at 60 psi angled spray valve 8.91 gpm at 60 psi add-on faucet
- Eterna compression cartridge with spring check to prevent cross flow of water
- Lever handle with color coded index
- 1/2 in NPT female eccentric inlet with 2 in dia flange
- Adjustable center from 7-3/4 to 8-1/4 in
- Hanger hook, tubular nozzles swivel arm and spray valve stainless steel hose and chrome plated metal handle
- Quarter turn compression cartridge spindle
- Add-on nozzles
