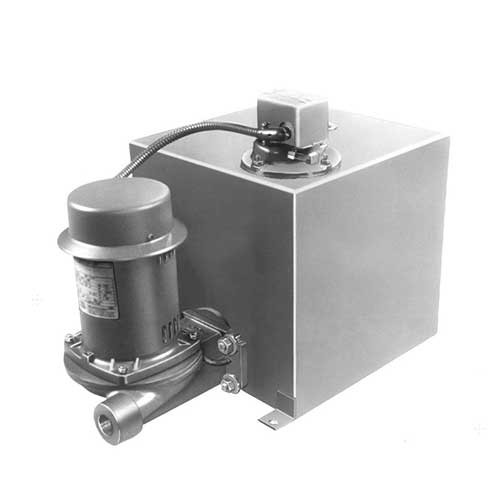

Spirax Sarco GS2S101 G Series Simplex Packaged Condensate Electric Pump, Carbon Steel Body, 3/4 in Outlet, NPT Connection
CBPN:176822
MPN:GS2S101
DESCRIPTION
Spirax Sarco Packaged Condensate Electric Pump, Simplex, Series: G Series, 18 gpm Flow Rate, 3/4 in Outlet, NPT Connection, 1/3 hp Power, 115/230 VAC 60 Hz 1 ph Electrical Rating, 20 psi Discharge Maximum, 10 gal Reservoir, Stainless Steel Float, Open Drip-Proof Enclosure, Carbon Steel Body
Spirax Sarco "G" Series condensate and boiler feed pumps are packaged units completely assembled, wired and tested at the factory. They are used in low pressure steam heating systems to collect and quickly return condensate to the boiler or boiler feed unit. Pumping action is controlled by an integral float switch on simplex (one pump) units or mechanical alternator on duplex (two pump) units. Unlike boiler feed units which are controlled by a boiler mounted control and equipped with a makeup valve mechanism, condensate pumps usually do not directly supply boiler makeup water.
Spirax Sarco GS2S101 G Series Simplex Packaged Condensate Electric Pump, Carbon Steel Body, 3/4 in Outlet, NPT Connection
CBPN:176822
MPN:GS2S101
DESCRIPTION
Spirax Sarco Packaged Condensate Electric Pump, Simplex, Series: G Series, 18 gpm Flow Rate, 3/4 in Outlet, NPT Connection, 1/3 hp Power, 115/230 VAC 60 Hz 1 ph Electrical Rating, 20 psi Discharge Maximum, 10 gal Reservoir, Stainless Steel Float, Open Drip-Proof Enclosure, Carbon Steel Body
Spirax Sarco "G" Series condensate and boiler feed pumps are packaged units completely assembled, wired and tested at the factory. They are used in low pressure steam heating systems to collect and quickly return condensate to the boiler or boiler feed unit. Pumping action is controlled by an integral float switch on simplex (one pump) units or mechanical alternator on duplex (two pump) units. Unlike boiler feed units which are controlled by a boiler mounted control and equipped with a makeup valve mechanism, condensate pumps usually do not directly supply boiler makeup water.
Specifications
Item Features
- System overload protection - the second pump is activated if the rate of condensate return exceeds the limits of the first pump
- Extra long service life - each of the two pumps is activated automatically on alternating pumping cycles so the work load is evenly distributed between the two pumps
- Back-up system protection - a second pump is automatically actuated if the first one fails to start, maintenance or repairs can be made on either pump without shutting down the other one or interrupting system operation
- Simplex units are equipped with vapor tight, heavy duty float switch control with stainless steel float
- Easily field adjustable to provide proper pump control and operation
