Spirax Sarco ES002110 APT14 Simplex Pump Package, Ductile Iron Body, 1 in Inlet x 1-1/2 in Outlet
CBPN:253656
MPN:ES002110
Price:
$17124.54 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pump Package, Simplex, Series: APT14, 1 in Inlet, 1-1/2 in Outlet, 232 psig Maximum, 388 deg F, Ductile Iron Body, Enamel Coated

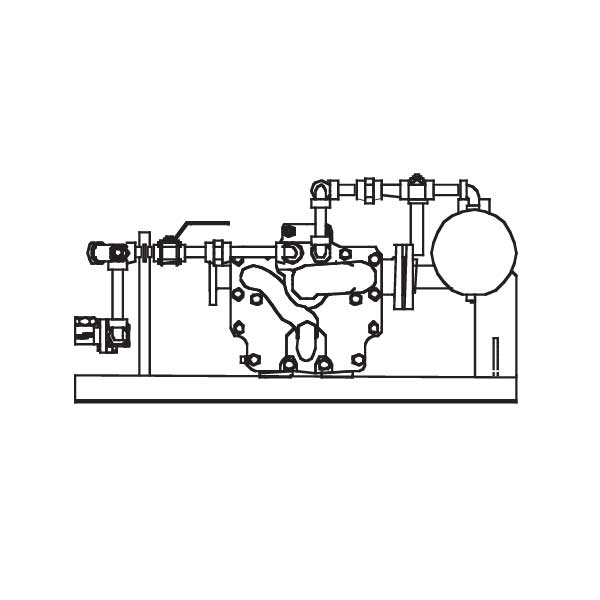

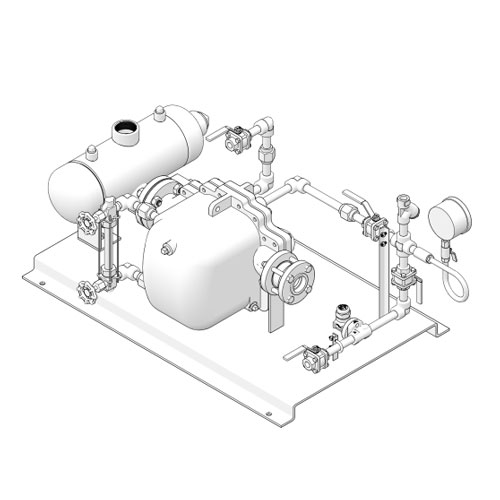

The compact low profile modular pump/trap system consists of the versatile APT 14 automatic pumping trap pre-piped and mounted on a steel base. The simplex or duplex modules include a condensate reservoir sized to accommodate the pump cycles. The module requires only service field connections for complete installation and fast startup.
Spirax Sarco ES002110 APT14 Simplex Pump Package, Ductile Iron Body, 1 in Inlet x 1-1/2 in Outlet
CBPN:253656
MPN:ES002110
Price:
$17124.54 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pump Package, Simplex, Series: APT14, 1 in Inlet, 1-1/2 in Outlet, 232 psig Maximum, 388 deg F, Ductile Iron Body, Enamel Coated
The compact low profile modular pump/trap system consists of the versatile APT 14 automatic pumping trap pre-piped and mounted on a steel base. The simplex or duplex modules include a condensate reservoir sized to accommodate the pump cycles. The module requires only service field connections for complete installation and fast startup.
Specifications
Brand: Spirax Sarco
Weight: 126 lbs
Body Material: Ductile Iron
Inlet Size: 1 in
Outlet Size: 1-1/2 in
Finish: Enamel Coated
Manufacturer Name: Spirax-Sarco Inc
Maximum Pressure: 232 psig
Series: APT14
Temperature Rating: 388 deg F
Type: Simplex
Application: Air Handlers, Heat Exchangers, Absorption Chillers, Evaporators and Dryers
Standards and Approvals: ANSI 150 | ASME Section IX
Item Features
- Spirax Sarco non-electric APT14 automatic pump trap
- Motive steam drip station with Spirax Sarco UTD 52L trap and isolation valves and air vent
- Hydro tested, blasted and coated with SSI industrial enamel
- Fabricated by ASME section IX certified welders
- Completely assembled modular pumping system on platform steel base with all connections protected for shipping
