Spirax Sarco ES000330 PTC Triplex Pressure Powered Pump Package With Stainless Steel Check Valve, Ductile Iron Body, 3 in Inlet x 2 in Outlet, NPT Connection
CBPN:104620
MPN:ES000330
Price:
$80042.26 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pressure Powered Pump Package, Triplex, Series: PTC, 3 in Inlet, 2 in Outlet, NPT Connection, 200 psig Maximum, 135 gal Reservoir, 400 deg F, Ductile Iron Body

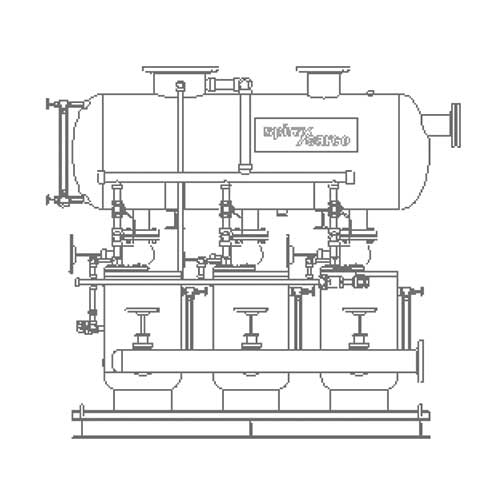

The Modular pumping system consists of Pressure Powered Pumps pre-engineered with the necessary auxiliary components into a skid-mounted module. The unit includes a receiver vessel designed to provide adequate separation of flash steam and condensate. The module requires only service field connections for complete installation and fast startup.
Spirax Sarco ES000330 PTC Triplex Pressure Powered Pump Package With Stainless Steel Check Valve, Ductile Iron Body, 3 in Inlet x 2 in Outlet, NPT Connection
CBPN:104620
MPN:ES000330
Price:
$80042.26 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pressure Powered Pump Package, Triplex, Series: PTC, 3 in Inlet, 2 in Outlet, NPT Connection, 200 psig Maximum, 135 gal Reservoir, 400 deg F, Ductile Iron Body
The Modular pumping system consists of Pressure Powered Pumps pre-engineered with the necessary auxiliary components into a skid-mounted module. The unit includes a receiver vessel designed to provide adequate separation of flash steam and condensate. The module requires only service field connections for complete installation and fast startup.
Specifications
Brand: Spirax Sarco
Weight: 2200 lbs
Body Material: Ductile Iron
Inlet Size: 3 in
Outlet Size: 2 in
Connection Type: NPT
Manufacturer Name: Spirax-Sarco Inc
Maximum Pressure: 200 psig
Reservoir Capacity: 135 gal
Series: PTC
Temperature Rating: 400 deg F
Type: Triplex
Includes: Structural Steel Skid and Painted with 1 Coat Industrial Black Enamel
Application: For condensate recovery modules are used where multiple sources of condensate are to be pumped and flash steam is to be vented
Standards and Approvals: ANSI Class 150 | ASME Specified
Item Features
- The system shall be a complete pre-piped factory package requiring only service connections for a fully functional system
- Electricity shall not be required for system operation
- All condensate piping shall be SCH 80/XH seamless carbon steel pipe welded
