Spirax Sarco PPEC Duplex Pump Package

Spirax Sarco ES000117 PPEC Duplex Low Profile Pressure Powered Pump With Stainless Steel Check Valve, Cast Iron Body, 1-1/2 in Inlet x 1-1/2 in Outlet, NPT Connection

CBPN:141800

MPN:ES000117

Price:
$35913.78 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

DESCRIPTION

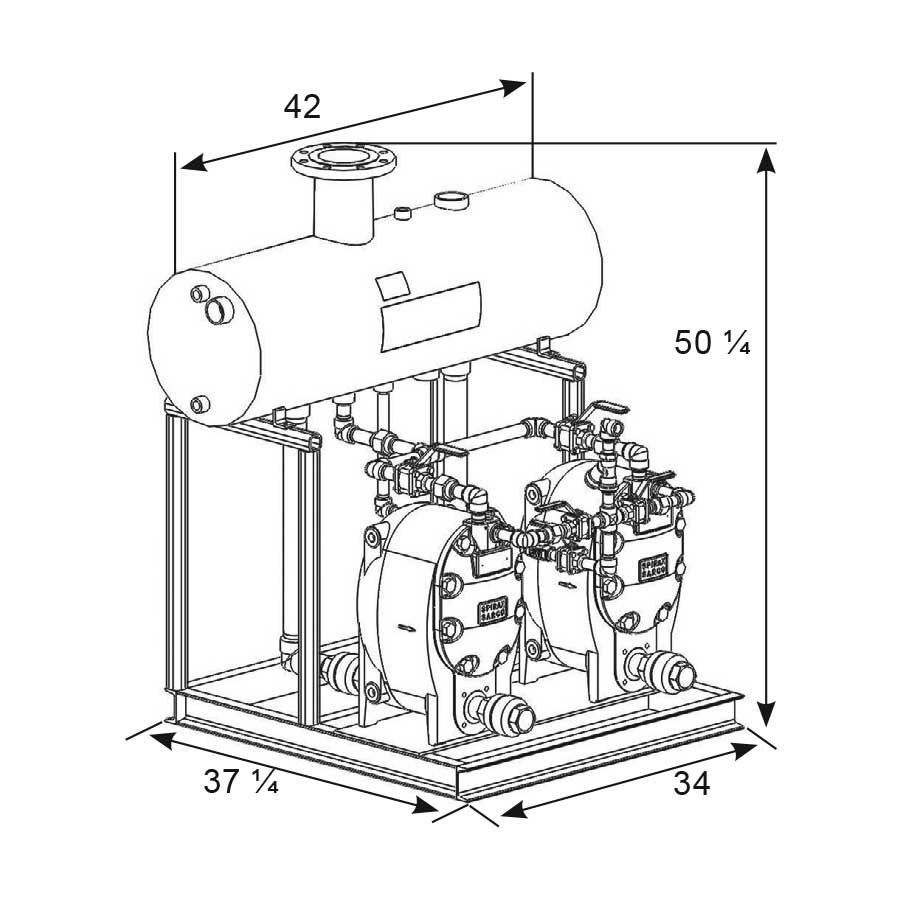

Spirax Sarco Pressure Powered Pump, Duplex Low Profile, Series: PPEC, 30 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, NPT Connection, 125 psig Maximum, 26 gal Reservoir, Stainless Steel Float, 0 to 450 deg F, Cast Iron Body, 34 in W x 37-1/4 in D x 50-1/4 in H Dimensions

Spirax Sarco Pressure Powered Pump™ is a non-electric pump which transfers high temperature condensate or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit uses steam, compressed air or any other suitable pressurized gas as the pumping force. The standard pressure powered pump will handle liquids from 0.9 to 1 specific gravity.

Spirax Sarco ES000117 PPEC Duplex Low Profile Pressure Powered Pump With Stainless Steel Check Valve, Cast Iron Body, 1-1/2 in Inlet x 1-1/2 in Outlet, NPT Connection

CBPN:141800

MPN:ES000117

Price:
$35913.78 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Pressure Powered Pump, Duplex Low Profile, Series: PPEC, 30 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, NPT Connection, 125 psig Maximum, 26 gal Reservoir, Stainless Steel Float, 0 to 450 deg F, Cast Iron Body, 34 in W x 37-1/4 in D x 50-1/4 in H Dimensions

Spirax Sarco Pressure Powered Pump™ is a non-electric pump which transfers high temperature condensate or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit uses steam, compressed air or any other suitable pressurized gas as the pumping force. The standard pressure powered pump will handle liquids from 0.9 to 1 specific gravity.

Specifications

BrandSpirax Sarco
Weight745 lbs
Body MaterialCast Iron
Inlet Size1-1/2 in
Outlet Size1-1/2 in
Connection TypeNPT
Dimensions34 in W x 37-1/4 in D x 50-1/4 in H
Float MaterialStainless Steel
Flow Rate30 gpm
Manufacturer NameSpirax-Sarco Inc
Maximum Pressure125 psig
Reservoir Capacity26 gal
SeriesPPEC
Temperature Rating0 to 450 deg F
TypeDuplex Low Profile
Standards and ApprovalsASTM A126 Class B
