Spirax Sarco PPEC Simplex Pump Package

Spirax Sarco ES000107 PPEC Low Profile Simplex Pressure Powered Pump With Stainless Steel Check Valve, Cast Steel Body, 1-1/2 in Inlet x 1-1/2 in Outlet, NPT Connection

CBPN:122471

MPN:ES000107

Price:
$33659.39 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

DESCRIPTION

Spirax Sarco Pressure Powered Pump, Low Profile Simplex, Series: PPEC, 30 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, NPT Connection, 285 psig Maximum, 12 gal Reservoir, Stainless Steel Float, 0 to 650 deg F, Cast Steel Body, 31 in W x 20 in D x 44-1/8 in H Dimensions

Spirax Sarco Pressure Powered Pump™ is a non-electric pump which transfers high temperature condensate or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit uses steam, compressed air or any other suitable pressurized gas as the pumping force. The standard pressure powered pump will handle liquids from 0.9 to 1 specific gravity.

Spirax Sarco ES000107 PPEC Low Profile Simplex Pressure Powered Pump With Stainless Steel Check Valve, Cast Steel Body, 1-1/2 in Inlet x 1-1/2 in Outlet, NPT Connection

CBPN:122471

MPN:ES000107

Price:
$33659.39 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Pressure Powered Pump, Low Profile Simplex, Series: PPEC, 30 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, NPT Connection, 285 psig Maximum, 12 gal Reservoir, Stainless Steel Float, 0 to 650 deg F, Cast Steel Body, 31 in W x 20 in D x 44-1/8 in H Dimensions

Spirax Sarco Pressure Powered Pump™ is a non-electric pump which transfers high temperature condensate or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit uses steam, compressed air or any other suitable pressurized gas as the pumping force. The standard pressure powered pump will handle liquids from 0.9 to 1 specific gravity.

Specifications

BrandSpirax Sarco
Weight470 lbs
Body MaterialCast Steel
Inlet Size1-1/2 in
Outlet Size1-1/2 in
Connection TypeNPT

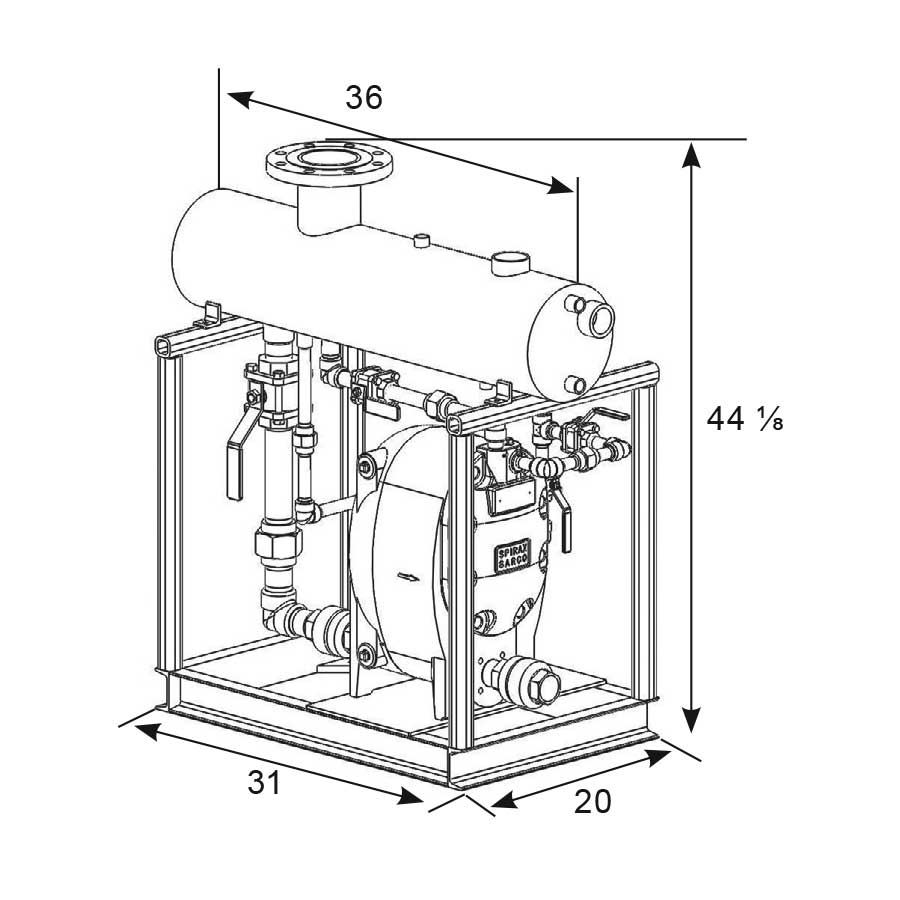

Dimensions31 in W x 20 in D x 44-1/8 in H
Float MaterialStainless Steel
Flow Rate30 gpm
Manufacturer NameSpirax-Sarco Inc
Maximum Pressure285 psig
Reservoir Capacity12 gal
SeriesPPEC
Temperature Rating0 to 650 deg F
TypeLow Profile Simplex
Standards and ApprovalsASME Specified | ASTM A216 Grade WCB
