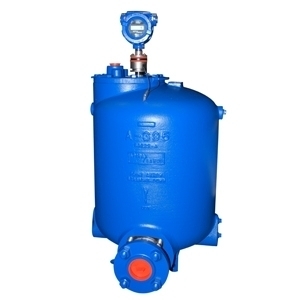

Spirax Sarco Pivotrol® 72861.3, PTC Pressure Powered Pump With Check Valve, Ductile Iron Body, 2 in Inlet x 2 in Outlet, NPT/ANSI 150 Flanged Connection
CBPN:88933
MPN:72861.3
DESCRIPTION
Spirax Sarco Pivotrol® Pressure Powered Pump, 2 in Inlet, 2 in Outlet, NPT/ANSI 150 Flanged, 200 psig Operating Maximum, Stainless Steel Float, 400 deg F Operating, Ductile Iron Body, 23.3 in L x 31.6 in H
The Spirax Sarco Pivotrol® Pump (patented) is a non electric pump which transfers high temperature condensate, or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit including PowerPivot® technology (patented) uses steam, compressed air or any other suitable pressurized gas as the pumping force. The standard Pivotrol® Pump (patented) will handle liquids from 0.9 to 1.0 specific gravity.
Spirax Sarco Pivotrol® 72861.3, PTC Pressure Powered Pump With Check Valve, Ductile Iron Body, 2 in Inlet x 2 in Outlet, NPT/ANSI 150 Flanged Connection
CBPN:88933
MPN:72861.3
DESCRIPTION
Spirax Sarco Pivotrol® Pressure Powered Pump, 2 in Inlet, 2 in Outlet, NPT/ANSI 150 Flanged, 200 psig Operating Maximum, Stainless Steel Float, 400 deg F Operating, Ductile Iron Body, 23.3 in L x 31.6 in H
The Spirax Sarco Pivotrol® Pump (patented) is a non electric pump which transfers high temperature condensate, or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit including PowerPivot® technology (patented) uses steam, compressed air or any other suitable pressurized gas as the pumping force. The standard Pivotrol® Pump (patented) will handle liquids from 0.9 to 1.0 specific gravity.
Specifications
Item Features
- Stainless steel check valve
- 200 psig at 400 deg F maximum allowable pressure
- 400 deg F at 200 psig maximum allowable temperature
- 6 maximum number of cycles per minute
- 5 psig minimum motive differential pressure
- 7.1 gal nominal pump discharge per cycle
- 3 lb/1000 lb of liquid pumped steam/air consumption
- For increased service life, operate pump with motive pressure 15 to 20 psig above pump back pressure
- NPT cover
