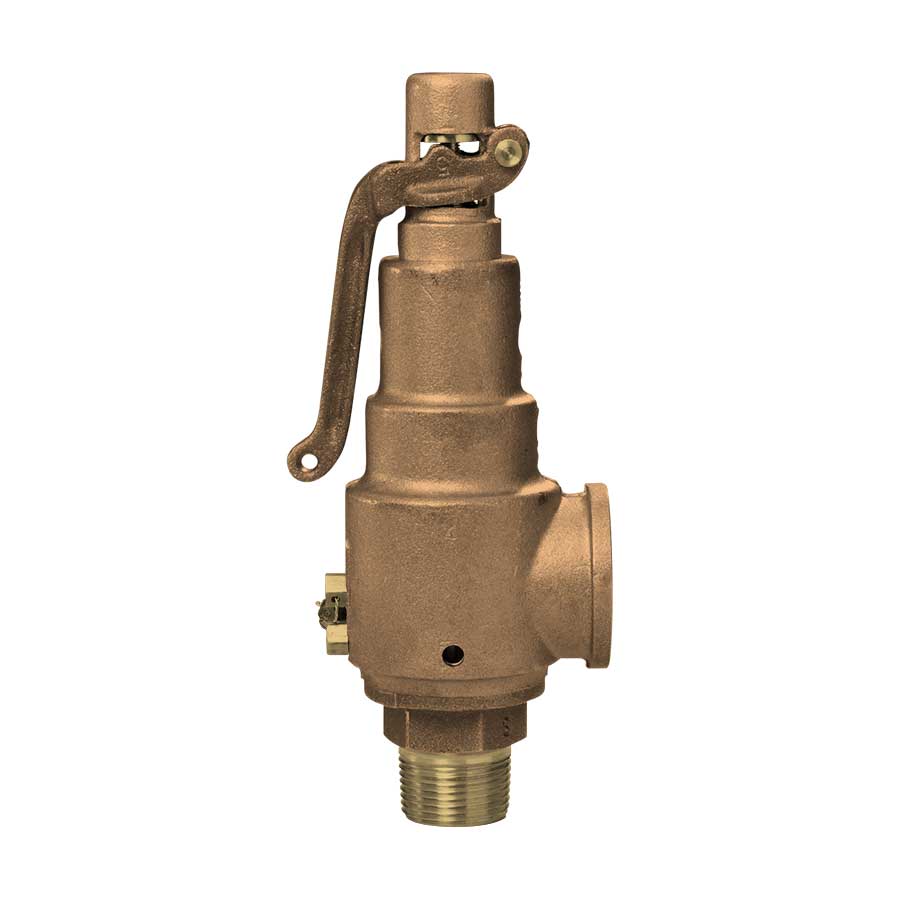

Spirax Sarco 72112 SV5708 Safety Relief Valve Set, 1-1/4 in Nominal, NPT End Style, 250 psig Pressure, Bronze Body
CBPN:166858
MPN:72112
Price:
$535.99 / EA
DESCRIPTION
Spirax Sarco Safety Relief Valve Set, 1-1/4 in Nominal, NPT, 250 psig, 406 deg F, Media: Air/Gas/Steam, Lever Operated Actuator, Bronze Body, 8-5/8 in H
Spirax Sarco Bronze valve line is a high capacity safety valve used for boilers, piping lines and vessel protection. Designed and engineered for heavy-duty industrial use. ASME approved and National Board flow-rated for capacity.
Set pressures are available from 15 to 250 psi. Please specify when ordering.
Spirax Sarco 72112 SV5708 Safety Relief Valve Set, 1-1/4 in Nominal, NPT End Style, 250 psig Pressure, Bronze Body
CBPN:166858
MPN:72112
Price:
$535.99 / EA
DESCRIPTION
Spirax Sarco Safety Relief Valve Set, 1-1/4 in Nominal, NPT, 250 psig, 406 deg F, Media: Air/Gas/Steam, Lever Operated Actuator, Bronze Body, 8-5/8 in H
Spirax Sarco Bronze valve line is a high capacity safety valve used for boilers, piping lines and vessel protection. Designed and engineered for heavy-duty industrial use. ASME approved and National Board flow-rated for capacity.
Set pressures are available from 15 to 250 psi. Please specify when ordering.
Specifications
Brand: Spirax Sarco
Weight: 3.7 lbs
Nominal Size: 1-1/4 in
End Style: NPT
Pressure Rating: 250 psig
Body Material: Bronze
Actuator Type: Lever Operated
Dimensions: 8-5/8 in H
Manufacturer Name: Spirax-Sarco Inc
Media: Air/Gas/Steam
Temperature Rating: 406 deg F
Country of Origin: US
Standards and Approvals: ASTM B-16/61/62 Body
Item Features
- Safeguard against mechanical damage to equipment and surroundings
- Safeguard against loss of product and production
- Safeguard against damage to the environment
- Safeguard against injury and loss of life
- Designed for durability
- Top guided seating and discharge
- Full nozzle at high capacity levels
- Excellent re-seating characteristics with pivoting ball-post design
- Short, tuned blow-down and can be adjusted with double ring to meet specific requirements
- Heavy duty hood and lever mechanism
- Standard 17-7 stainless steel springs
- Mechanical damage to equipment and surroundings
- Loss of product and production
- Damage to the environment
- Injury and loss of life
- Vertical installation
- F orifice ID
