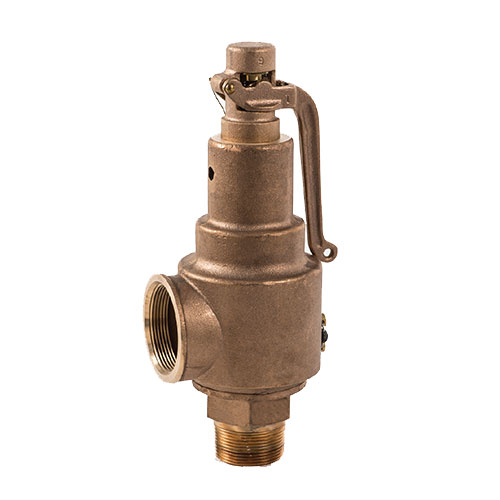

Spirax Sarco 72111 SV5708 Safety Relief Valve, 1 x 1-1/4 in Nominal, MNPT x FNPT End Style, 250 psi Pressure, Cast Brass Body
CBPN:166857
MPN:72111
Price:
$457.73 / EA
DESCRIPTION
Spirax Sarco Safety Valve, 1 x 1-1/4 in Nominal, MNPT x FNPT, 250 psi, 406 deg F, Media: Air/Gas/Steam, Cast Brass Body, 8-5/8 in L
Spirax Sarco® Bronze valve line is a high capacity safety valve used for boilers, piping lines and vessel protection. Designed and engineered for heavy-duty industrial use. ASME approved and National Board flow-rated for capacity.
Set pressures are available from 15 to 250 psi. Please specify when ordering.
Spirax Sarco 72111 SV5708 Safety Relief Valve, 1 x 1-1/4 in Nominal, MNPT x FNPT End Style, 250 psi Pressure, Cast Brass Body
CBPN:166857
MPN:72111
Price:
$457.73 / EA
DESCRIPTION
Spirax Sarco Safety Valve, 1 x 1-1/4 in Nominal, MNPT x FNPT, 250 psi, 406 deg F, Media: Air/Gas/Steam, Cast Brass Body, 8-5/8 in L
Spirax Sarco® Bronze valve line is a high capacity safety valve used for boilers, piping lines and vessel protection. Designed and engineered for heavy-duty industrial use. ASME approved and National Board flow-rated for capacity.
Set pressures are available from 15 to 250 psi. Please specify when ordering.
Specifications
Brand: Spirax Sarco
Weight: 3.5 lbs
Nominal Size: 1 x 1-1/4 in
End Style: MNPT x FNPT
Pressure Rating: 250 psi
Body Material: Cast Brass
Dimensions: 8-5/8 in L
Manufacturer Name: Spirax-Sarco Inc
Media: Air/Gas/Steam
Temperature Rating: 406 deg F
Standards and Approvals: ASME Sec VIII | ASTM B-16/61/62 | National Board Certified | Unfired Vessel(UV) Certified
Item Features
- Safeguard against mechanical damage to equipment and surroundings
- Safeguard against loss of product and production
- Safeguard against damage to the environment
- Safeguard against injury and loss of life
- Designed for durability
- Top guided seating and discharge
- Full nozzle
- High capacity levels
- Excellent re-seating characteristics with pivoting ball-post design
- Short, tuned blow-down and can be adjusted with double ring to meet specific requirements
- Heavy duty hood and lever mechanism
- Standard 17-7 stainless steel springs
- Bronze internals
- Brass disc
- 6 orifices - 12 sizes of piping options
- Full nozzle, high capacity level
- F ID size
