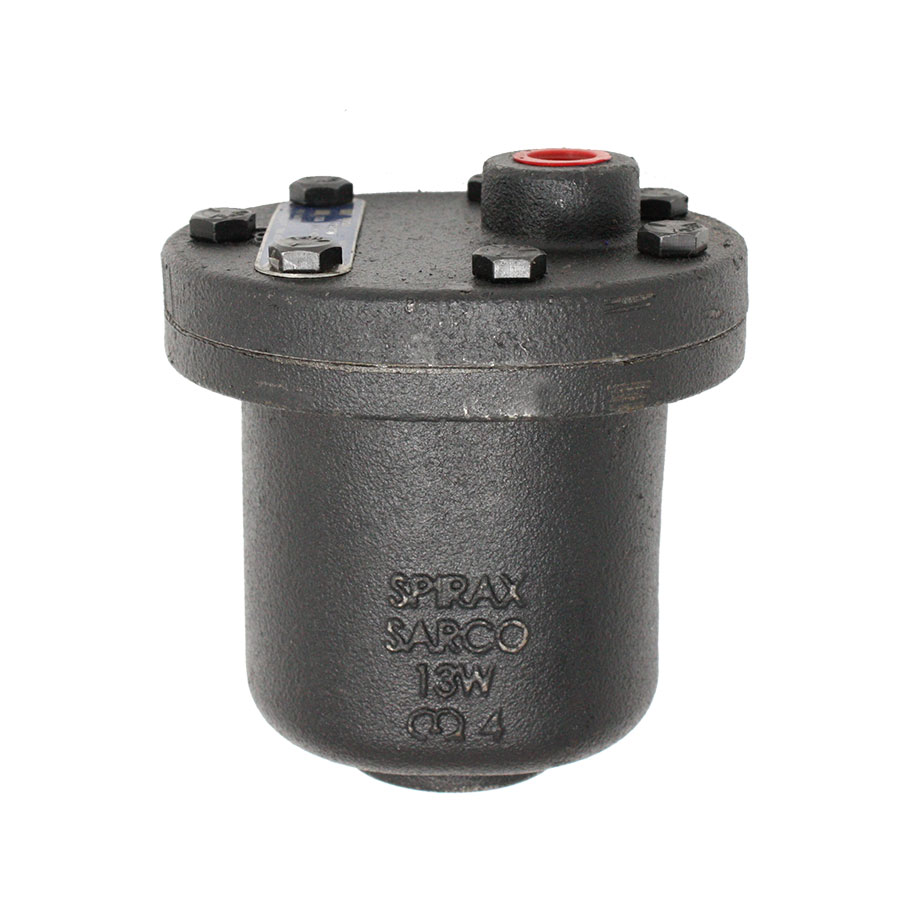

Spirax Sarco 69844 13WS Air Eliminator, 1 x 3/8 in, FNPT Connection, 150 psig Pressure, 338 deg F, Cast Iron
CBPN:25683
MPN:69844
Price:
$289.38 / EA
DESCRIPTION
Spirax Sarco Air Eliminator, Series: 13WS, 1 x 3/8 in Size, FNPT Connection, 150 psig Pressure, 338 deg F, Cast Iron
13WS and 13WHS Air Eliminators improve the circulation of pressurized liquids by eliminating air and other non-condensable gases which may collect at high points in the system. The EPDM valve head ensures tight shut-off.
Spirax Sarco 69844 13WS Air Eliminator, 1 x 3/8 in, FNPT Connection, 150 psig Pressure, 338 deg F, Cast Iron
CBPN:25683
MPN:69844
Price:
$289.38 / EA
DESCRIPTION
Spirax Sarco Air Eliminator, Series: 13WS, 1 x 3/8 in Size, FNPT Connection, 150 psig Pressure, 338 deg F, Cast Iron
13WS and 13WHS Air Eliminators improve the circulation of pressurized liquids by eliminating air and other non-condensable gases which may collect at high points in the system. The EPDM valve head ensures tight shut-off.
Specifications
Brand: Spirax Sarco
Weight: 4.8 lbs
Size: 1 x 3/8 in
Connection Type: FNPT
Pressure Rating: 150 psig
Temperature Rating: 338 deg F
Material: Cast Iron
Manufacturer Name: Spirax-Sarco Inc
Series: 13WS
Application: Used on both hot and cold liquid services, Cold water lines, Suction lines to pumps, Mixing tanks, Condensate return lines, Cooling water lines on air compressors and Water storage tanks
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Maximum allowable pressure: 150 psig at 0 to 353 deg F
- Maximum allowable temperature: 450 deg F at 0 to 125 psig
- Stainless steel internals with EPDM valve head
- 5.1 in H
