Spirax Sarco 68669 733-125 Basket Strainer With 1/8 in Perforated Screen, 16 in Nominal, ANSI 125 Flange Connection, Cast Iron
CBPN:239061
MPN:68669
Price:
$16463.72 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION

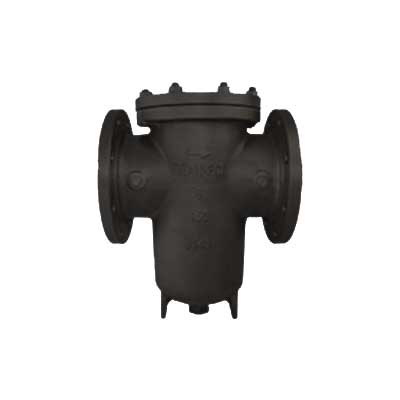

Spirax Sarco Basket Strainer, 16 in Nominal, ANSI 125 Flange, Cast Iron
Spirax Sarco 68669 733-125 Basket Strainer With 1/8 in Perforated Screen, 16 in Nominal, ANSI 125 Flange Connection, Cast Iron
CBPN:239061
MPN:68669
Price:
$16463.72 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Basket Strainer, 16 in Nominal, ANSI 125 Flange, Cast Iron
Specifications
Brand: Spirax Sarco
Weight: 1320 lbs
Nominal Size: 16 in
Material: Cast Iron
Connection Type: ANSI 125 Flange
Pressure Class: 125 lb
Cover Gasket: Buna-N
Manufacturer Name: Spirax-Sarco Inc
Application: Steam/liquid application
Country of Origin: US
Standards and Approvals: ASME/ANSI B16-1 | ASTM A126 Grade B Body
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- 9200 Cv
- The strainer should be installed with the flow direction as indicated on the body, in B a horizontal pipeline
- 200 psig at 150 deg F WOG and 125 psig at 353 deg F steam pressure shell design conditions
- 304 stainless steel screen
