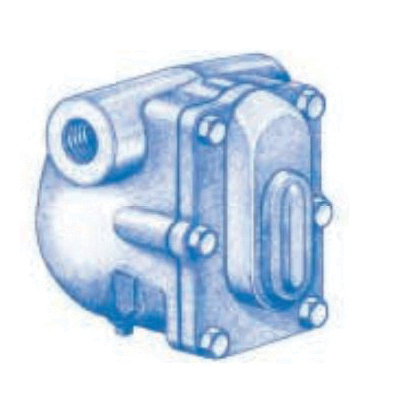

Spirax Sarco 67397, FAI-75 Straight Liquid Drain Trap, 1 in, NPT, 6-1/2 in L, 75 psig Operating, Cast Iron
CBPN:150650
MPN:67397
Price:
$566.02 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, Straight, 1 in Nominal, NPT, 6-1/2 in Length, 75 psig Operating, Cast Iron, 450 deg F Operating, 5.8 in H
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Spirax Sarco 67397, FAI-75 Straight Liquid Drain Trap, 1 in, NPT, 6-1/2 in L, 75 psig Operating, Cast Iron
CBPN:150650
MPN:67397
Price:
$566.02 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, Straight, 1 in Nominal, NPT, 6-1/2 in Length, 75 psig Operating, Cast Iron, 450 deg F Operating, 5.8 in H
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Specifications
Brand: Spirax Sarco
Weight: 11.3 lbs
Nominal Size: 1 in
End Style: NPT
Length: 6-1/2 in
Pressure Rating: 75 psig Operating
Material: Cast Iron
Dimensions: 5.8 in H
Manufacturer Name: Spirax-Sarco Inc
Series: FAI-75
Temperature Rating: 450 deg F Operating
Type: Straight
Application: Receiver and air line drainage, draining a liquid from its vapor phase
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Stainless steel internals
- 2700 lb/hr load at maximum operating pressure
- Maximum allowable pressure: 200 psig at 0 to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 200 psig
- In-line horizontal piping configuration
