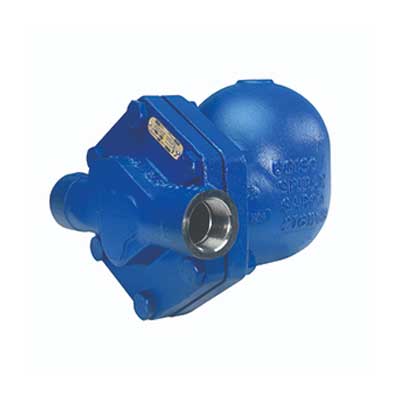

Spirax Sarco 67320, FA450 Liquid Drain Trap, 3/4 in, Socket Weld, 300 psig, Cast Steel
CBPN:238875
MPN:67320
Price:
$2924.74 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, Series: FA-450, 3/4 in Nominal, Socket Welded End Style, 300 psig Pressure, Cast Steel, 750 deg F, Domestic/Import: Domestic
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Spirax Sarco 67320, FA450 Liquid Drain Trap, 3/4 in, Socket Weld, 300 psig, Cast Steel
CBPN:238875
MPN:67320
Price:
$2924.74 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, Series: FA-450, 3/4 in Nominal, Socket Welded End Style, 300 psig Pressure, Cast Steel, 750 deg F, Domestic/Import: Domestic
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Specifications
Brand: Spirax Sarco
Weight: 18 lbs
Nominal Size: 3/4 in
End Style: Socket Welded
Pressure Rating: 300 psig
Material: Cast Steel
Manufacturer Name: Spirax-Sarco Inc
Series: FA-450
Temperature Rating: 750 deg F
Application: Receiver and air line drainage, draining a liquid from its vapor phase
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI B16.11 Connection | ASTM A216 WCB Body
Item Features
- In-line horizontal piping configuration
- Stainless steel internals
- Maximum allowable pressure: 535 psig at 650 deg F
- Maximum allowable temperature: 750 deg F at 0 to 505 psig
- 40000 lb/hr load at maximum operating pressure
- 3/4 in trap
