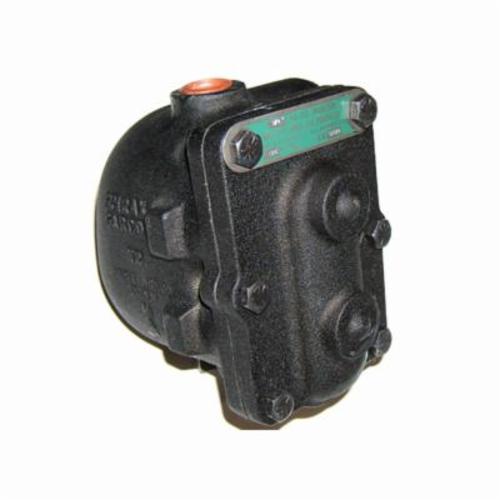

Spirax Sarco 67312, FA450 Liquid Drain Trap, 3/4 in, NPT, 65 psig, Cast Steel
CBPN:238881
MPN:67312
Price:
$2924.74 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 3/4 in Nominal, NPT, 65 psig, Cast Steel, 750 deg F
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Spirax Sarco 67312, FA450 Liquid Drain Trap, 3/4 in, NPT, 65 psig, Cast Steel
CBPN:238881
MPN:67312
Price:
$2924.74 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 3/4 in Nominal, NPT, 65 psig, Cast Steel, 750 deg F
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Specifications
Brand: Spirax Sarco
Weight: 18 lbs
Nominal Size: 3/4 in
End Style: NPT
Pressure Rating: 65 psig
Material: Cast Steel
Manufacturer Name: Spirax-Sarco Inc
Series: FA-450
Temperature Rating: 750 deg F
Application: Receiver and air line drainage, draining a liquid from its vapor phase
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A216 WCB Body
Item Features
- In-line horizontal piping configuration
- Stainless steel internals
- Maximum allowable pressure: 535 psig at 650 deg F
- Maximum allowable temperature: 750 deg F at 0 to 505 psig
- 71000 lb/hr load at maximum operating pressure
- 3/4 in trap
