Spirax Sarco 67213, INS60 Steam Injector, 1-1/2 in, NPT, 250 psig, 190 deg F, 316L Austenitic Stainless Steel Body
CBPN:201159
MPN:67213
DESCRIPTION
Spirax Sarco Steam Injector, 1-1/2 in Nominal, NPT, 250 psig, 190 deg F, 316L Austenitic Stainless Steel Body, KC51, 19.2, 121 Controller, 2 Injectors

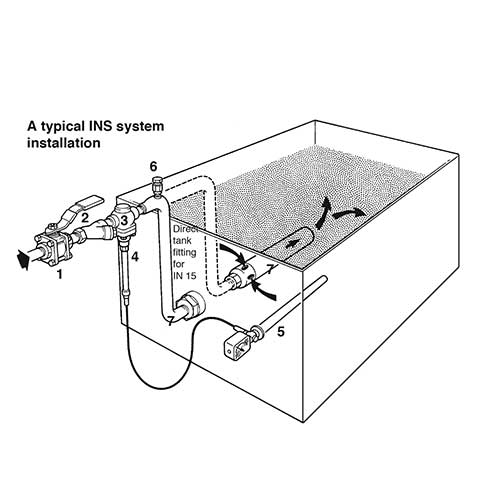

Spirax Sarco steam injectors use steam to raise the temperature of water or other liquids. They work by using a jet of steam to draw in the liquid through radial ports, mix it, and distribute the heated liquid throughout the tank vessel. The circulation induced by the injector ensures thorough mixing and avoids temperature stratification. Three sizes of injectors are available to suit a wide range of applications.
Spirax Sarco 67213, INS60 Steam Injector, 1-1/2 in, NPT, 250 psig, 190 deg F, 316L Austenitic Stainless Steel Body
CBPN:201159
MPN:67213
DESCRIPTION
Spirax Sarco Steam Injector, 1-1/2 in Nominal, NPT, 250 psig, 190 deg F, 316L Austenitic Stainless Steel Body, KC51, 19.2, 121 Controller, 2 Injectors
Spirax Sarco steam injectors use steam to raise the temperature of water or other liquids. They work by using a jet of steam to draw in the liquid through radial ports, mix it, and distribute the heated liquid throughout the tank vessel. The circulation induced by the injector ensures thorough mixing and avoids temperature stratification. Three sizes of injectors are available to suit a wide range of applications.
Specifications
Item Features
- Ideal for boiler feedtank heating of water and other fluids
- Heats, mixes and circulates no moving parts
- Compact design : minimizes noise and vibration
- 250 psig at 400 deg F maximum saturated steam conditions
- 190 deg F maximum heated liquid temperature
- 350 psig (PN25) body design rating
- SA121 Controller with 13 ft capillary, range 2 - 105 to 225 deg F
- Each INS system also includes a valve size model 10 ball valve and type CT strainer, a stainless steel well, and VB14 vacuum breaker
