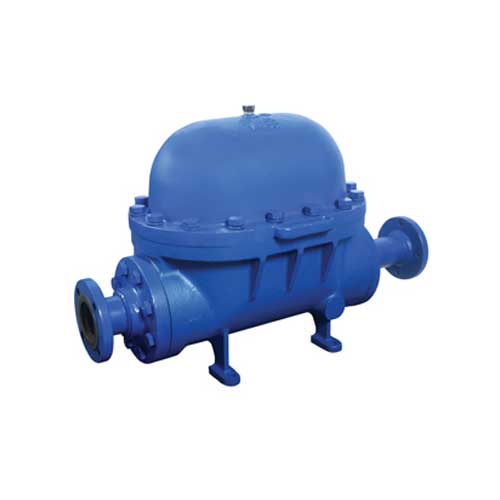

Spirax Sarco 66368, FA450 Liquid Drain Trap, 3 in, NPT, 465 psig, Cast Steel
CBPN:238885
MPN:66368
Price:
$24019.45 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 3 in Nominal, NPT, 465 psig, Cast Steel, 750 deg F
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Spirax Sarco 66368, FA450 Liquid Drain Trap, 3 in, NPT, 465 psig, Cast Steel
CBPN:238885
MPN:66368
Price:
$24019.45 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 3 in Nominal, NPT, 465 psig, Cast Steel, 750 deg F
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Specifications
Brand: Spirax Sarco
Weight: 465 lbs
Nominal Size: 3 in
End Style: NPT
Pressure Rating: 465 psig
Material: Cast Steel
Manufacturer Name: Spirax-Sarco Inc
Series: FA-450
Temperature Rating: 750 deg F
Application: Receiver and air line drainage, draining a liquid from its vapor phase
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A216 WCB Body
Item Features
- In-line horizontal piping configuration
- Stainless steel internals
- Maximum allowable pressure: 535 psig at 650 deg F
- Maximum allowable temperature: 750 deg F at 0 to 505 psig
- 900000 lb/hr load at maximum operating pressure
- 3 in trap
