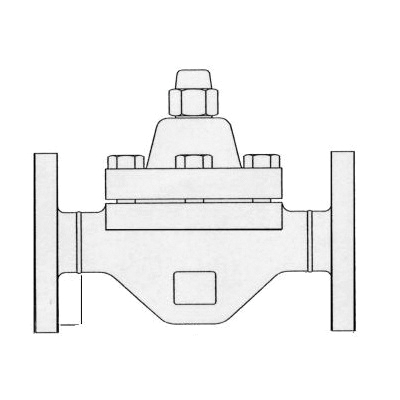

Spirax Sarco HP45 Bimetallic Steam Trap Line Drawing

Spirax Sarco 6230124, HP45 Steam Trap, 3/4 in, ANSI 600 Flange, 842 deg F, 652 psig, Forged Steel

CBPN:239836

MPN:6230124

Price:
$3854.76 / EA

DESCRIPTION

Spirax Sarco Steam Trap, 3/4 in Nominal, ANSI 600 Flange, 652 psig, Forged Steel, 842 deg F, 9-1/4 in W

Spirax Sarco's HP45 bimetallic steam traps are made of forged steel, and designed for draining high pressure, high temperature steam lines and processes. These steam traps, which are specially designed for HP steam, have a reinforced stainless steel insert within the body and can be repaired inline. They operate with no loss of steam, and quicky drain air, non-condensable gases and large quantities of cold water on start-up. Normally open in the event of failure, they have a check valve, a built-in strainer screen and an external device for adjusting the discharge temperature of the condensate.

Spirax Sarco 6230124, HP45 Steam Trap, 3/4 in, ANSI 600 Flange, 842 deg F, 652 psig, Forged Steel

CBPN:239836

MPN:6230124

Price:
$3854.76 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Steam Trap, 3/4 in Nominal, ANSI 600 Flange, 652 psig, Forged Steel, 842 deg F, 9-1/4 in W

Spirax Sarco's HP45 bimetallic steam traps are made of forged steel, and designed for draining high pressure, high temperature steam lines and processes. These steam traps, which are specially designed for HP steam, have a reinforced stainless steel insert within the body and can be repaired inline. They operate with no loss of steam, and quicky drain air, non-condensable gases and large quantities of cold water on start-up. Normally open in the event of failure, they have a check valve, a built-in strainer screen and an external device for adjusting the discharge temperature of the condensate.

Specifications

BrandSpirax Sarco
Weight22 lbs
Nominal Size3/4 in
End StyleANSI 600 Flange
MaterialForged Steel
Max Operating Pressure45 barg @ 425 deg C
Max Allowable Pressure153 barg/up to 38 deg C
Max Allowable Temperature425 deg C/up to 86 barg
Dimensions9-1/4 in W
Manufacturer NameSpirax-Sarco Inc
SeriesHP45
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A105 Grade II Body | EN 10204 3.1.B

Item Features

  • PN150, class 900 to ANSI B 16.34 body design conditions
  • Minimum operating pressure: 217 psig
  • Designed for maximum cold hydraulic test pressure of 3320 psig
