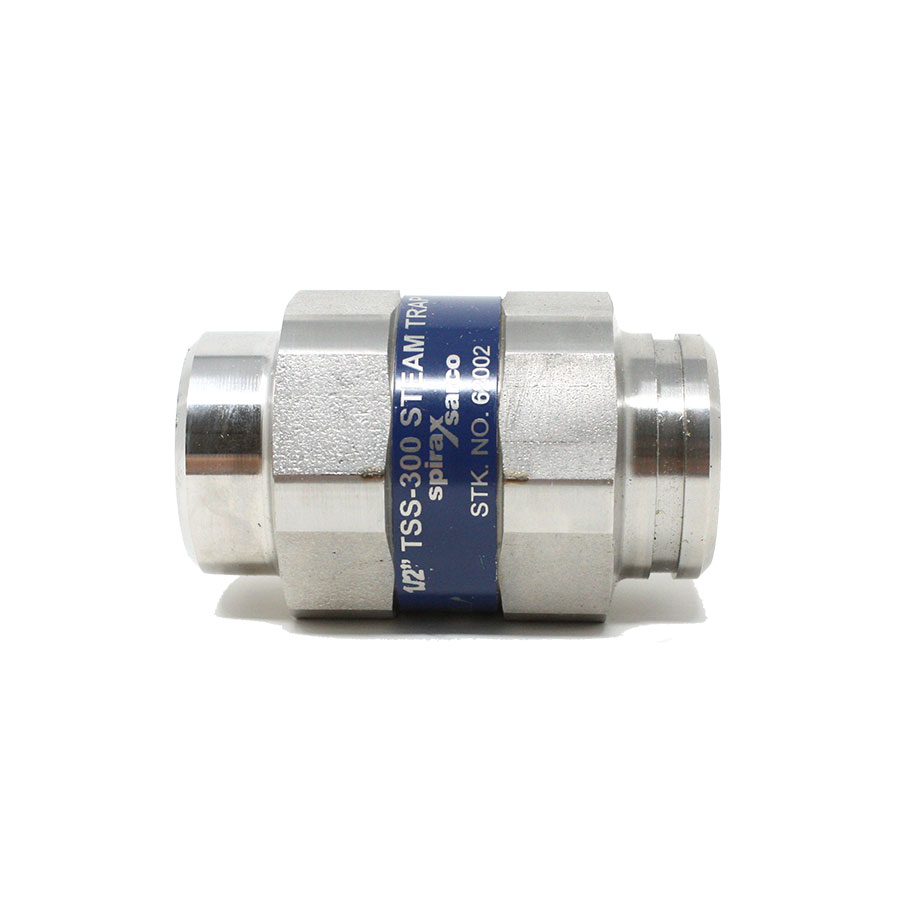

Spirax Sarco TSS300 Balanced Pressure Thermostatic Steam Trap

Spirax Sarco 62002, TSS300 Sealed Balanced Pressure Thermostatic Steam Trap, 1/2 in, FNPT, 725 deg F, 300 psi, Stainless Steel

CBPN:7500

MPN:62002

Price:
$462.28 / EA

DESCRIPTION

Spirax Sarco Thermostatic Steam Trap, Sealed Balanced Pressure, 1/2 in Nominal, NPT, 2-1/2 in Length, 300 psi, Stainless Steel, 725 deg F, 1.5 in W

The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 deg F (11 deg C) below saturated steam temperature. Trap may be installed in horizontal or vertical pipelines.

Spirax Sarco 62002, TSS300 Sealed Balanced Pressure Thermostatic Steam Trap, 1/2 in, FNPT, 725 deg F, 300 psi, Stainless Steel

CBPN:7500

MPN:62002

Price:
$462.28 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Thermostatic Steam Trap, Sealed Balanced Pressure, 1/2 in Nominal, NPT, 2-1/2 in Length, 300 psi, Stainless Steel, 725 deg F, 1.5 in W

The welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 deg F (11 deg C) below saturated steam temperature. Trap may be installed in horizontal or vertical pipelines.

Specifications

BrandSpirax Sarco
Weight0.7 lbs
Nominal Size1/2 in
End StyleFNPT
Max Operating Pressure300 psig
Max Allowable Pressure800 psig/up to 725 deg F
Max Allowable Temperature725 deg F/up to 800 psig
MaterialStainless Steel
Dimensions1.5 in W
Length2-1/2 in
Manufacturer NameSpirax-Sarco Inc
SeriesTSS300
TypeSealed Balanced Pressure
ApplicationCritical and non-critical steam tracing systems and steam main drips
Standards and ApprovalsAISI 304 Body

Item Features

  • The body weld joint complies with ASME section IX and BS4870
  • 800 psig at 725 deg F Maximum allowable pressure
  • 725 deg F at 0 to 800 psig Maximum allowable temperature
  • Saturated steam temperature
  • Vertical or horizontal piping configuration
