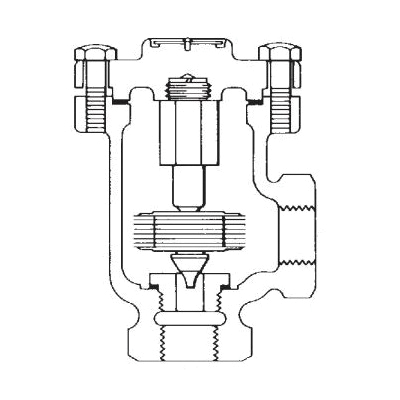

Spirax Sarco 61708, T250 Angle Pattern Balanced Pressure Thermostatic Steam Trap, 3/4 in, FNPT, 250 psig Operating, Cast Iron
CBPN:7486
MPN:61708
Price:
$505.96 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Angle Pattern, 3/4 in Nominal, NPT, 250 psig Operating, Cast Iron, 4.56 in H
The T250 has a welded stainless steel element, which is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 degF (11 degC) below saturated steam temperature.
Spirax Sarco 61708, T250 Angle Pattern Balanced Pressure Thermostatic Steam Trap, 3/4 in, FNPT, 250 psig Operating, Cast Iron
CBPN:7486
MPN:61708
Price:
$505.96 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Angle Pattern, 3/4 in Nominal, NPT, 250 psig Operating, Cast Iron, 4.56 in H
The T250 has a welded stainless steel element, which is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 degF (11 degC) below saturated steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 3.5 lbs
Nominal Size: 3/4 in
End Style: FNPT
Max Operating Pressure: 250 psig
Max Allowable Pressure: 250 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 250 psig
Material: Cast Iron
Dimensions: 4.56 in H
Manufacturer Name: Spirax-Sarco Inc
Series: T250
Type: Angle Pattern
Application: Hospital, Laundry and kitchen equipment, High capacity process equipment, Outdoor applications subject to freezing, applications requiring high air venting capacity on initial start up
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Saturated steam operating temperature
- stainless steel internals
- Maximum allowable pressure: 250 psig at up to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- 8500 lb/hr capacity hot condensate
- 0.438 in orifice
- 20 deg F below saturated steam temperature
- Horizontal installation
- Adjust automatically to varying steam pressures
- Excellent air venting characteristics during plant start-up and during normal operation
- Large discharge capacities for their size
- Robust design of the internals gives a good life expectancy
