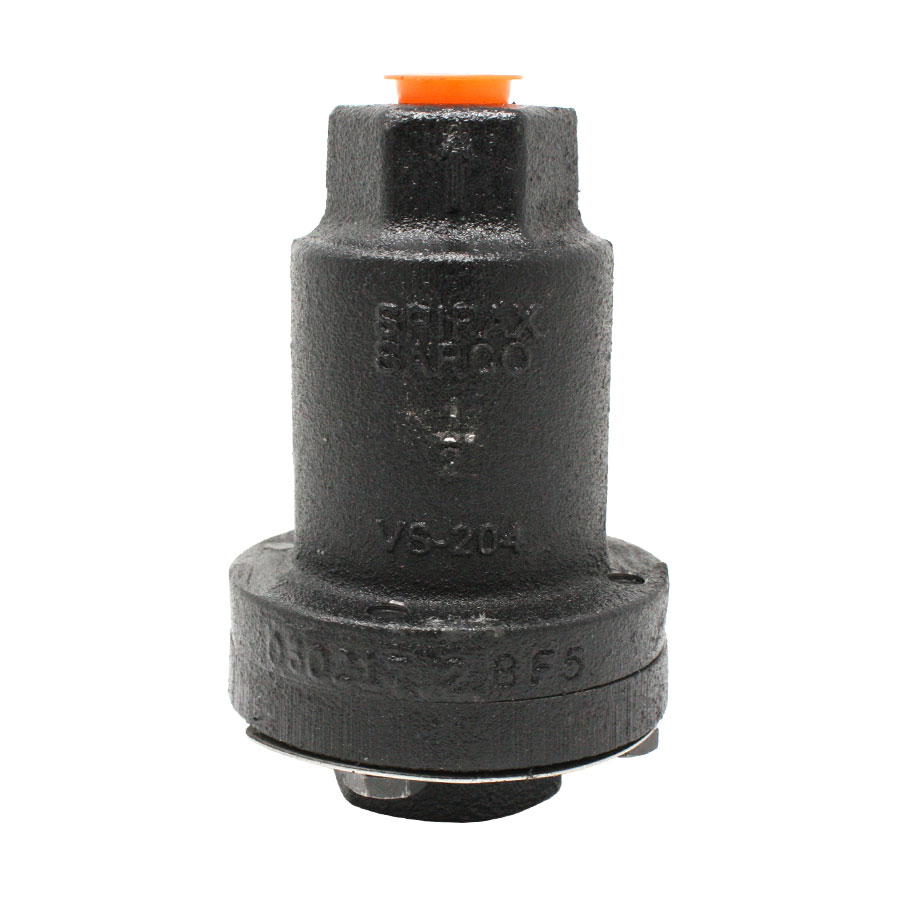

Spirax Sarco 61685, VS204 Balanced Pressure Thermostatic Air Vent, 1/2 in NPT, 250 psi, 450 deg F, 380 scfm, Cast Iron
CBPN:7525
MPN:61685
Price:
$384.93 / EA
DESCRIPTION
Spirax Sarco Thermostatic Air Vent, Balanced Pressure, 1/2 in NPT, 250 psi, 450 deg F, 380 scfm, Cast Iron, 4.9 in H x 3.1 in W
The VS204 and VS206 air vents are designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation.
Spirax Sarco 61685, VS204 Balanced Pressure Thermostatic Air Vent, 1/2 in NPT, 250 psi, 450 deg F, 380 scfm, Cast Iron
CBPN:7525
MPN:61685
Price:
$384.93 / EA
DESCRIPTION
Spirax Sarco Thermostatic Air Vent, Balanced Pressure, 1/2 in NPT, 250 psi, 450 deg F, 380 scfm, Cast Iron, 4.9 in H x 3.1 in W
The VS204 and VS206 air vents are designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation.
Specifications
Brand: Spirax Sarco
Weight: 3.3 lbs
Connection Type: 1/2 in NPT
Pressure Rating: 250 psi
Temperature Rating: 450 deg F
Flow Rate: 380 scfm
Material: Cast Iron
Dimensions: 4.9 in H x 3.1 in W
Manufacturer Name: Spirax-Sarco Inc
Series: VS204
Type: Balanced Pressure
Application: For installation at end of all steam mains and headers, on all steam equipment such as air coils, heat exchangers, autoclaves, sterilizers, platen presses, rotating cylinders, jacketed kettles, laundry equipment and reboilers
Standards and Approvals: ASTM A126 Class B/A449 Body
Item Features
- Saturated steam
- Stainless steel internals
- 0.44 in orifice
- 250 psig at 450 deg F Maximum allowable pressure
- 450 deg F at 0 to 250 psig Maximum allowable temperature
