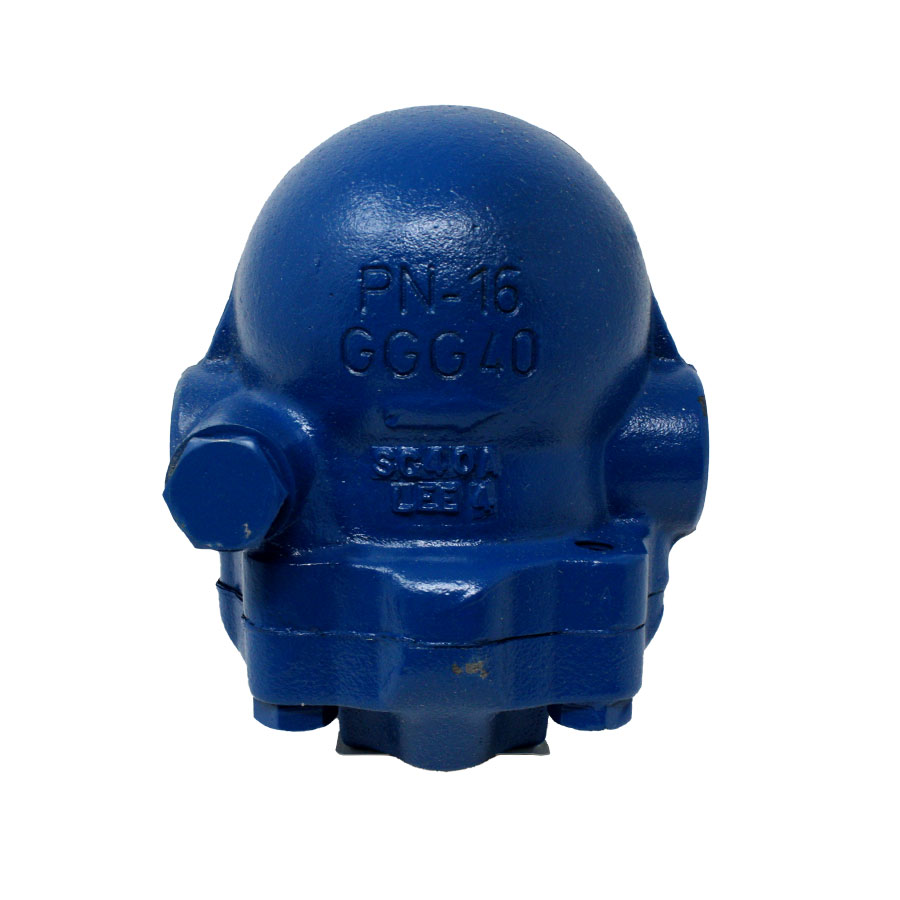

Spirax Sarco 6150193, IFT14-10B Ball Float and Thermostatic Steam Trap With Integral Spiratec Sensor, 1/2 in, FNPT, 240 deg C, 150 psig, Ductile Iron
CBPN:7514
MPN:6150193
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, 1/2 in Nominal, NPT, 150 psig, Ductile Iron, 240 deg C
The IFT14 is an SG iron bodied ball float steam trap having stainless steel working internals, integral Spiratec sensor and automatic air venting facility. It can be supplied with either a WLS1 sensor to detect waterlogging and steam leakage or a SS1 sensor for steam leakage only. The IFT14 is supplied with horizontal connections, having flow from right to left (R - L), and can be simply integrated into all existing Spiratec monitoring systems.
Spirax Sarco 6150193, IFT14-10B Ball Float and Thermostatic Steam Trap With Integral Spiratec Sensor, 1/2 in, FNPT, 240 deg C, 150 psig, Ductile Iron
CBPN:7514
MPN:6150193
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, 1/2 in Nominal, NPT, 150 psig, Ductile Iron, 240 deg C
The IFT14 is an SG iron bodied ball float steam trap having stainless steel working internals, integral Spiratec sensor and automatic air venting facility. It can be supplied with either a WLS1 sensor to detect waterlogging and steam leakage or a SS1 sensor for steam leakage only. The IFT14 is supplied with horizontal connections, having flow from right to left (R - L), and can be simply integrated into all existing Spiratec monitoring systems.
Specifications
Item Features
- Capsule: The BP99 / 32 capsule which is used in the FT14 is suitable for use on 150 deg C superheat at 0 barg and 50 deg C superheat at 32 barg
- Maximum allowable pressure: 16 barg at 100 deg C
- Maximum allowable temperature: 250 deg C at 13 barg
- 14 barg maximum operating pressure for saturated steam service
- Maximum cold hydraulic test pressure: 24 barg
- PN16 body design conditions
